Actual Below Ground Rare Earth Samples From Sheep Creek
Click the images to display in a slideshow

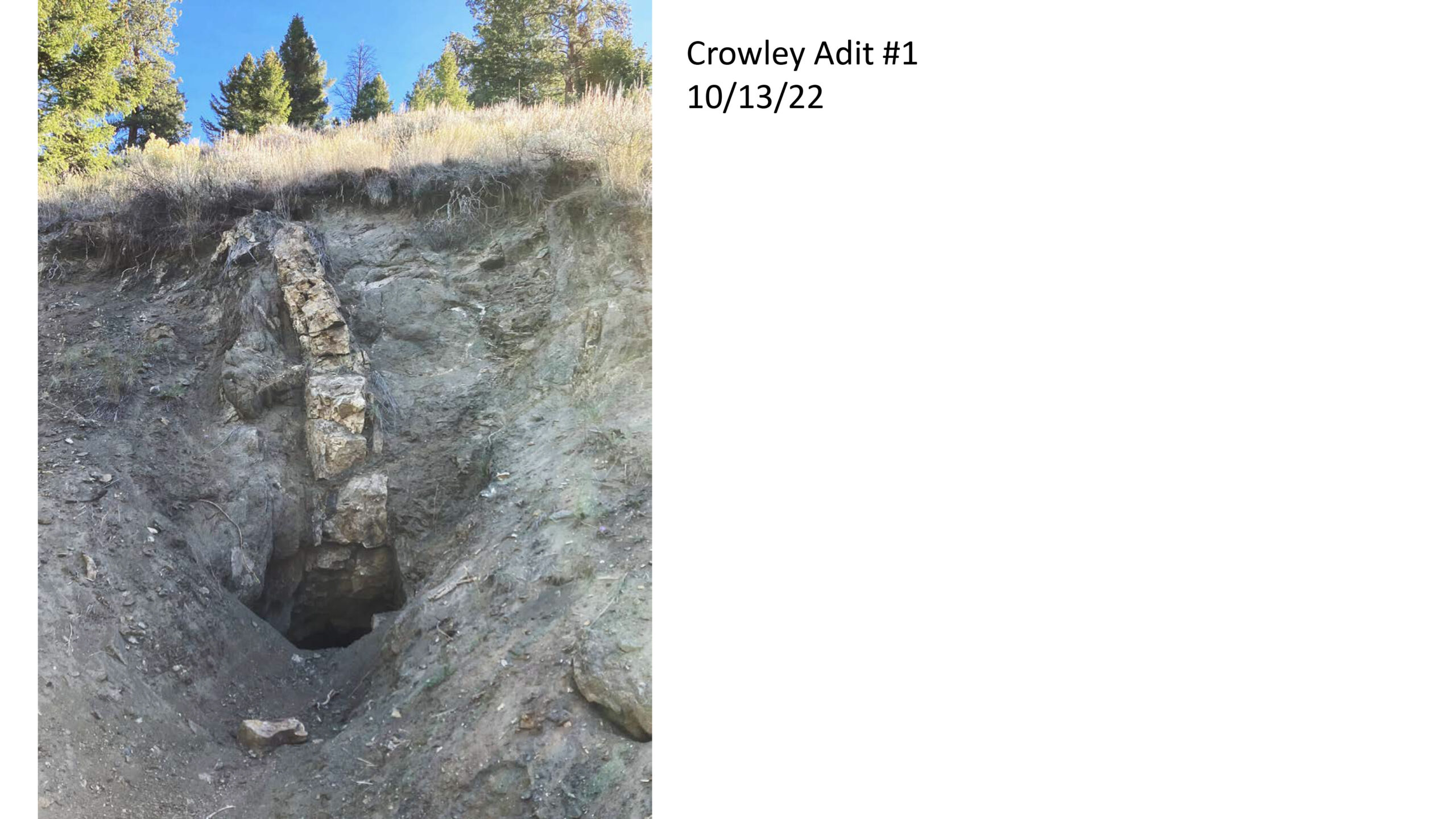

Crowley Adit #1 10/13/2022

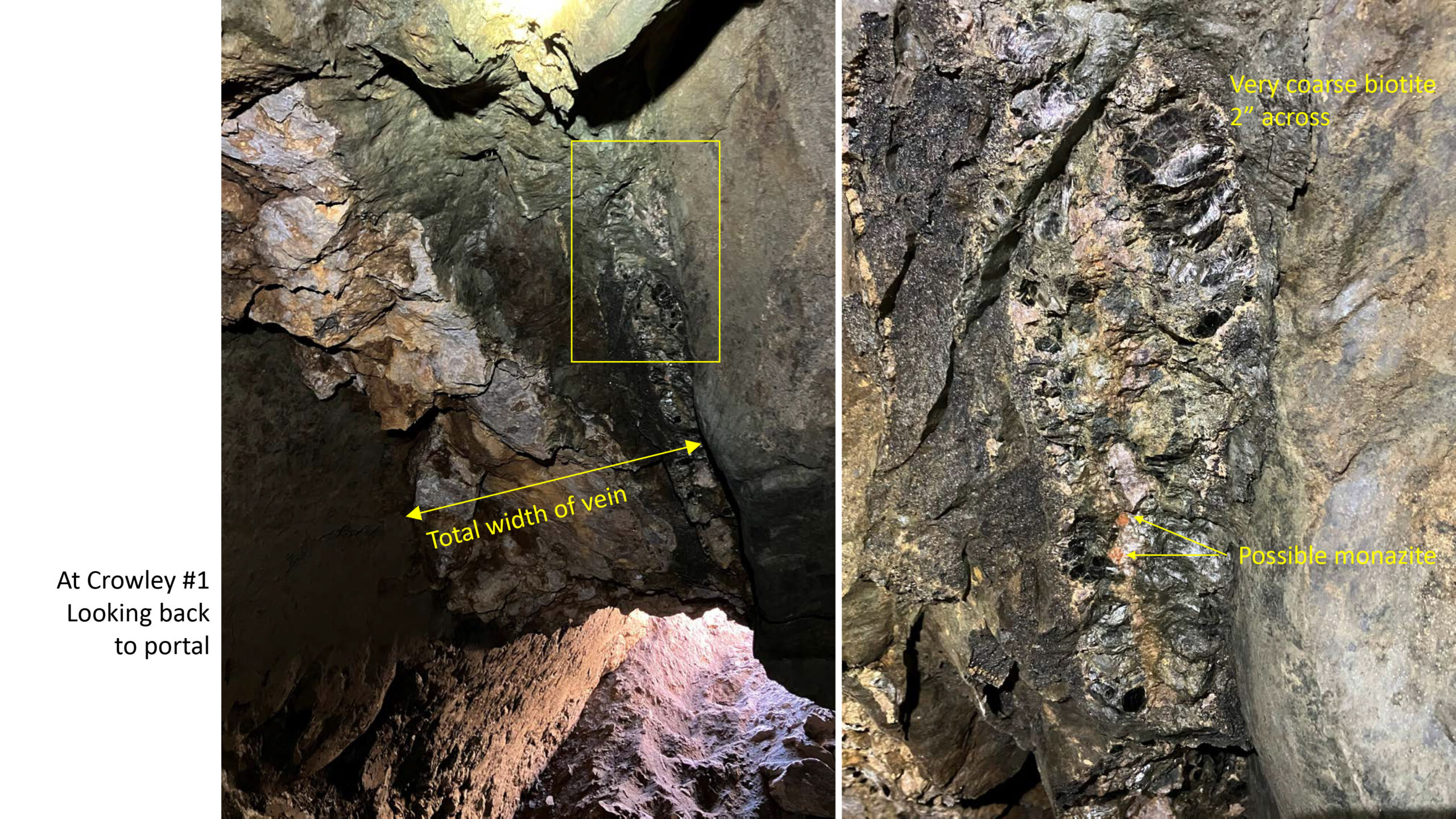

At Crowley #1 Looking Back at portal.

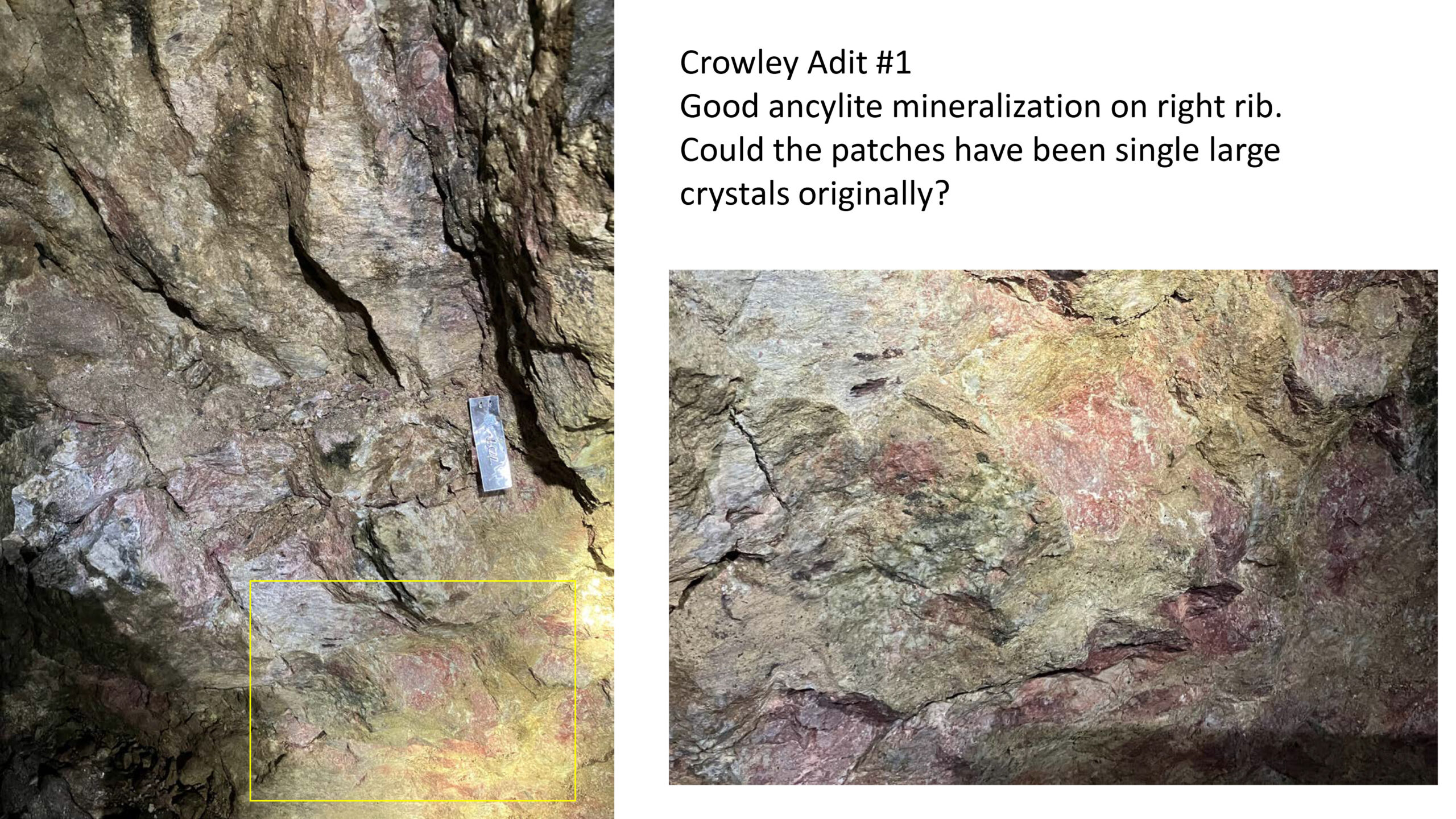

Crowley Adit #1 Good ancylite mineralisation on right rib. Could the patches have been single large crystals originally?

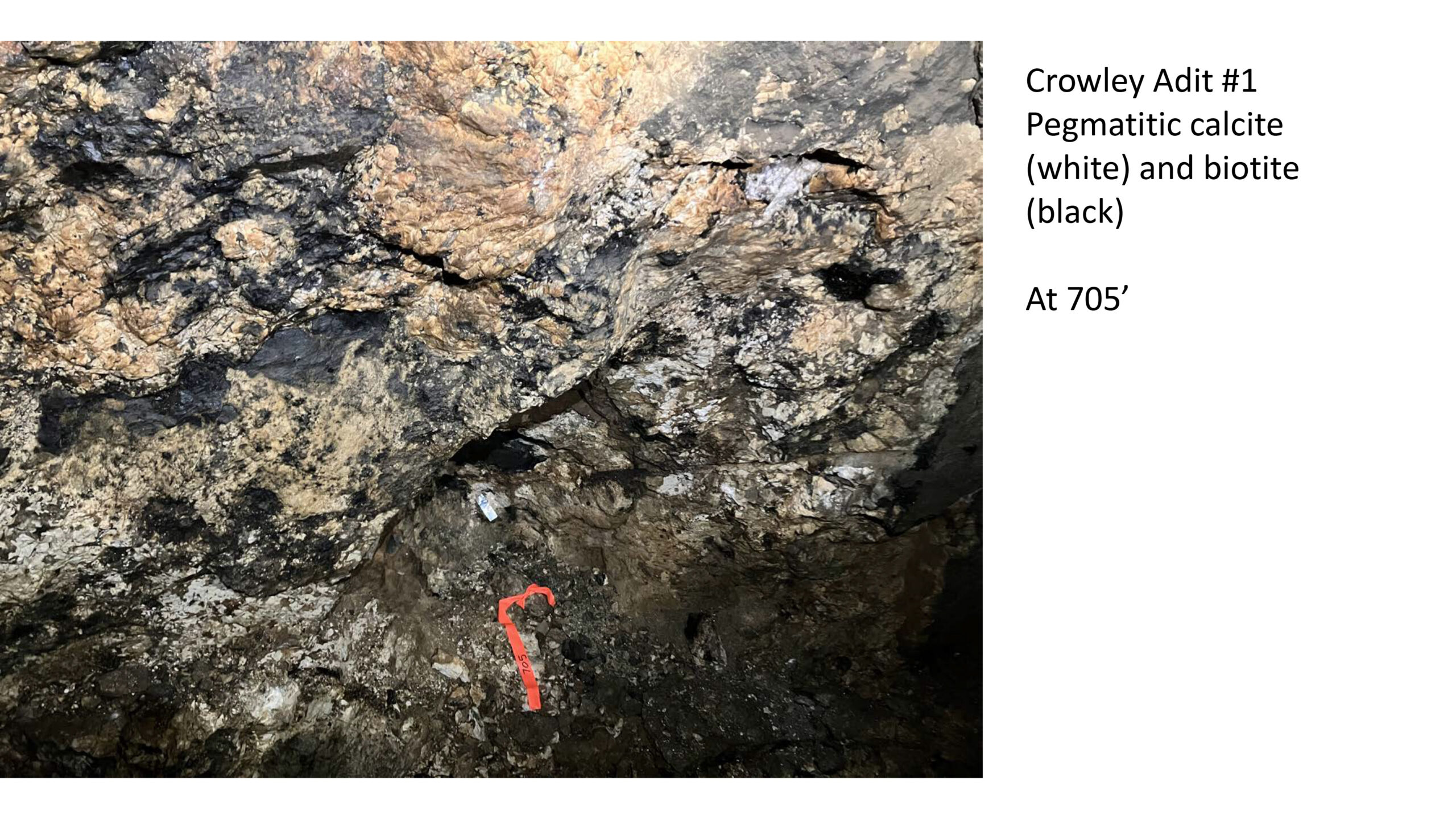

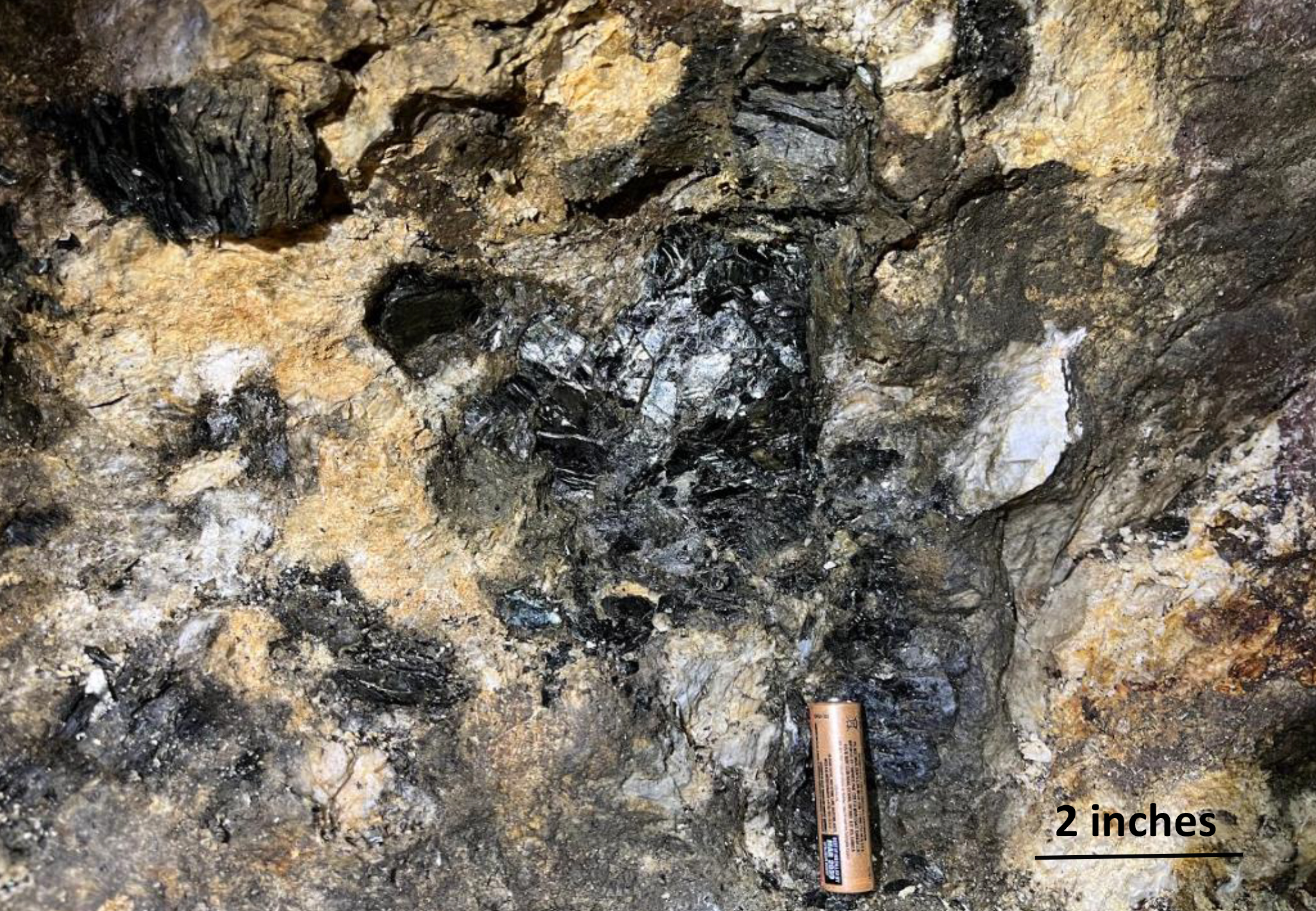

Crowley Adit #1 Pegmatitic calcite (white) and biotite (black). At 705'.

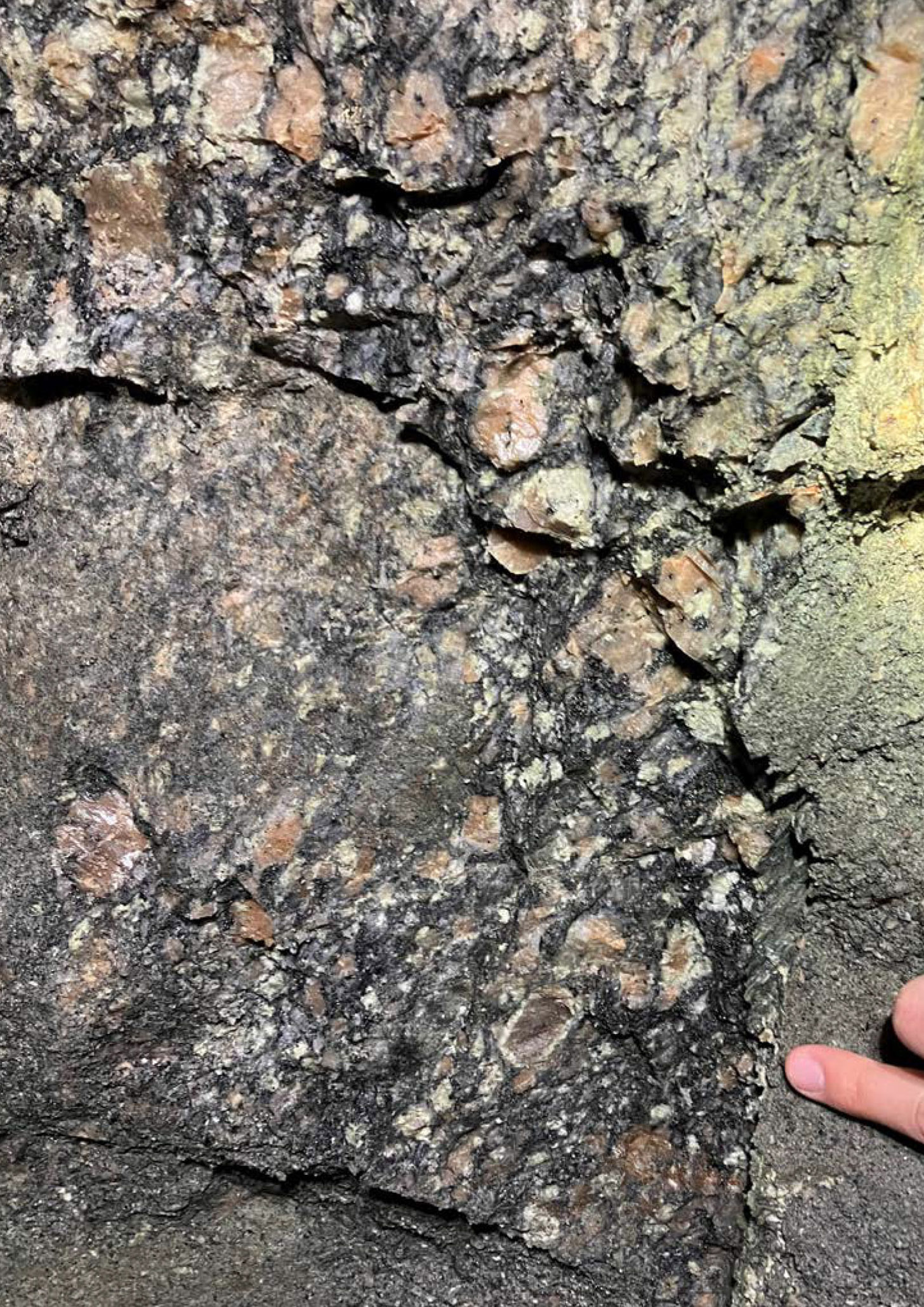

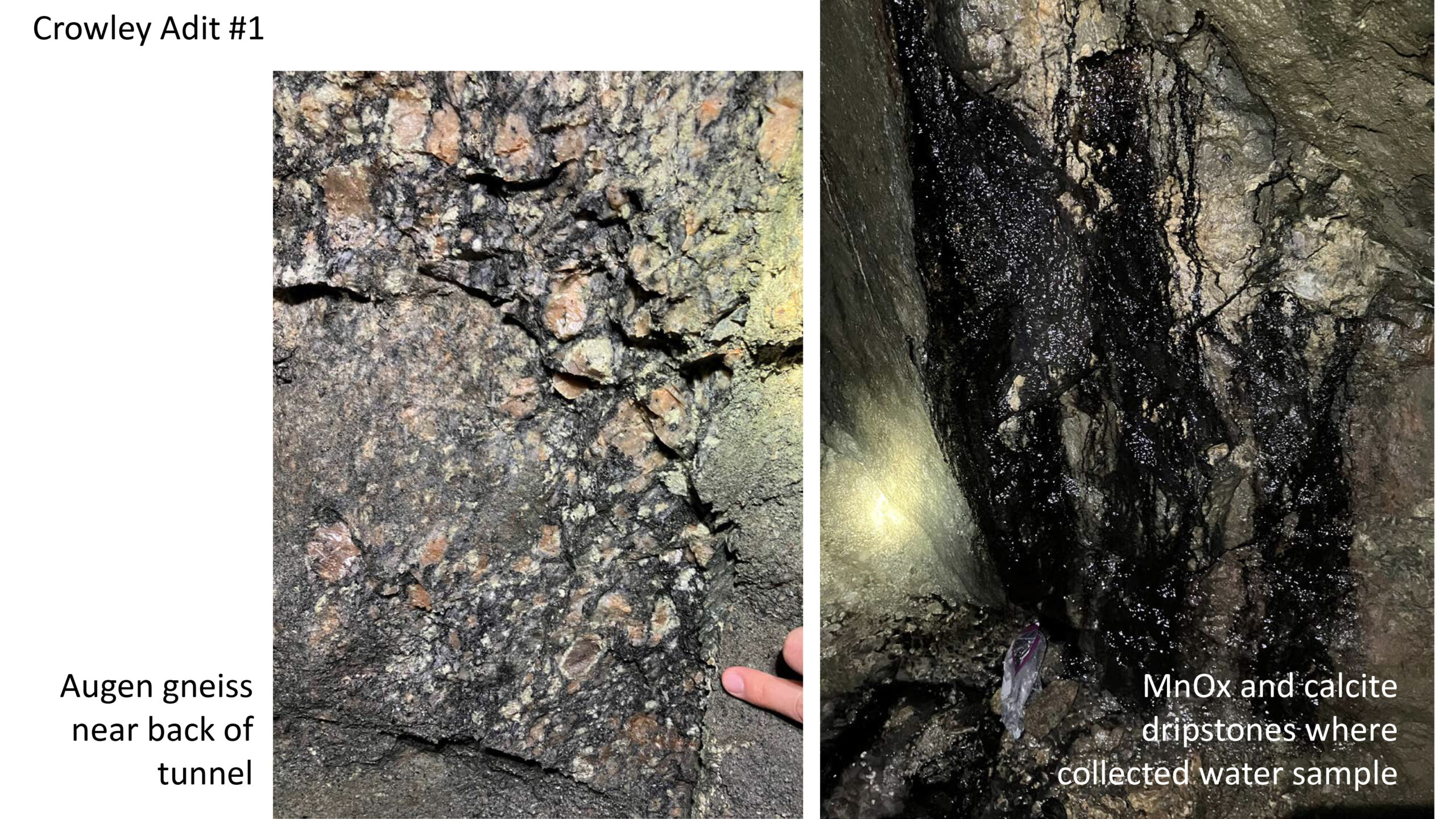

Çrowley Adit #1 Augen gneiss near back of tunnel.

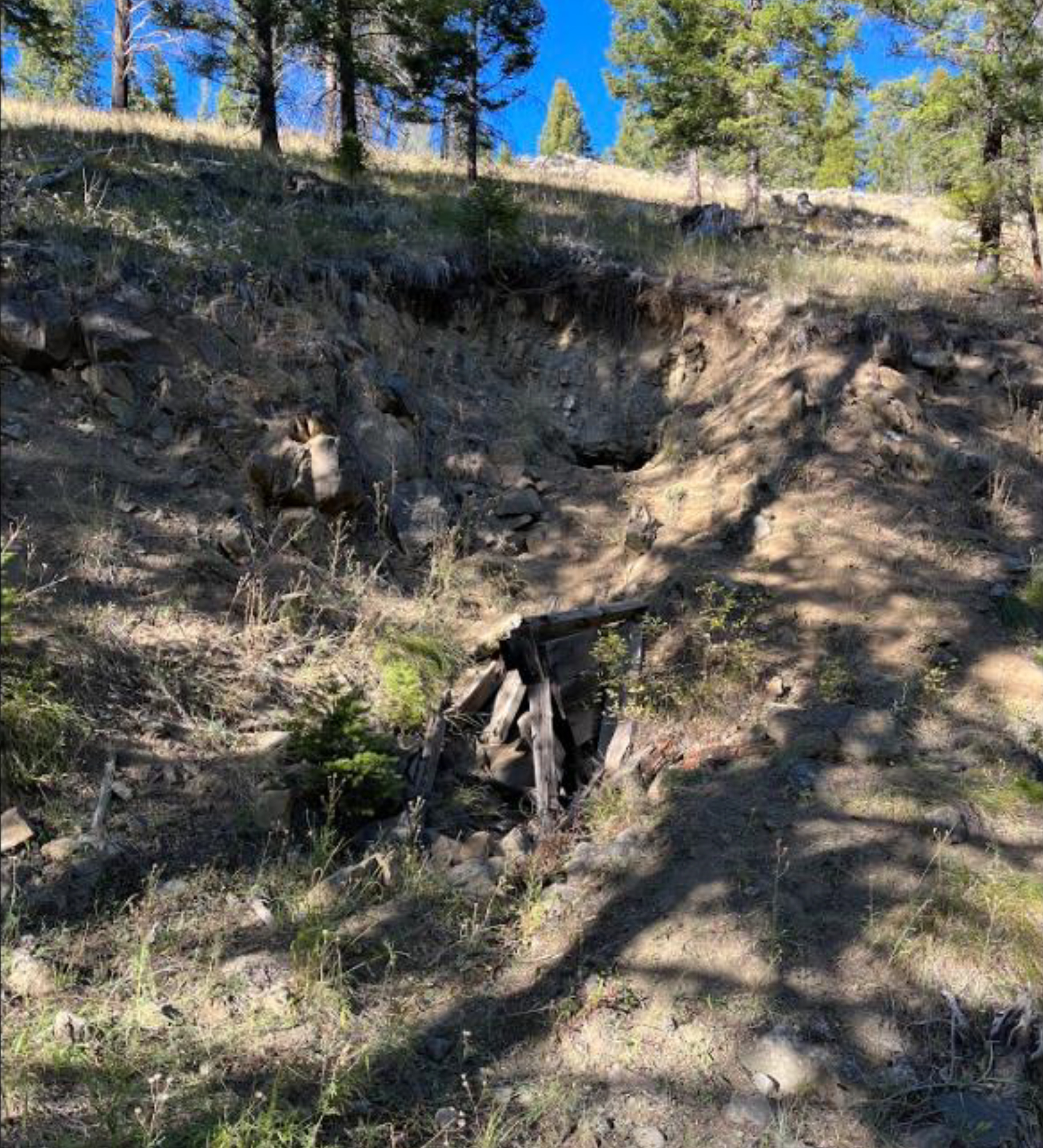

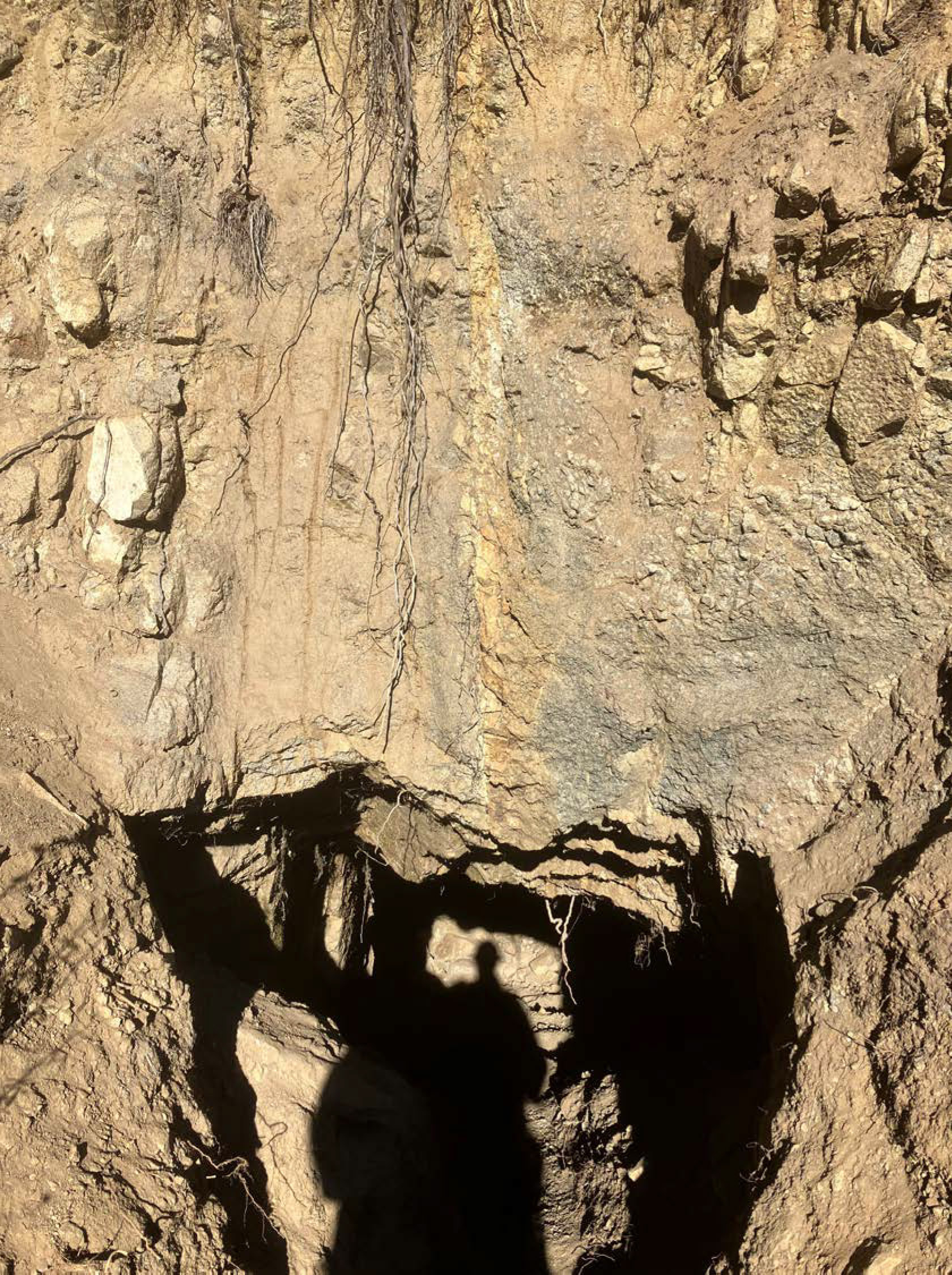

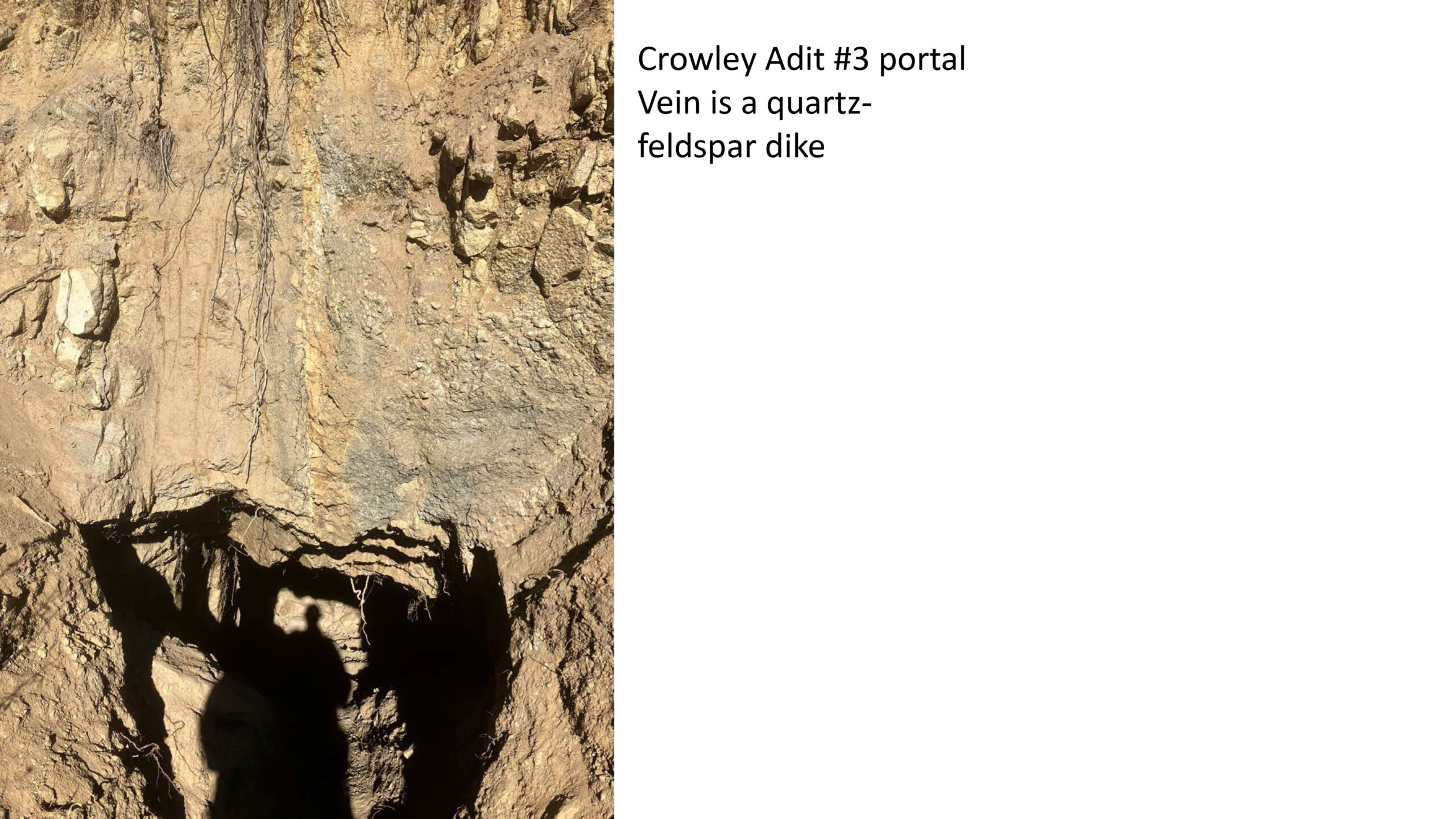

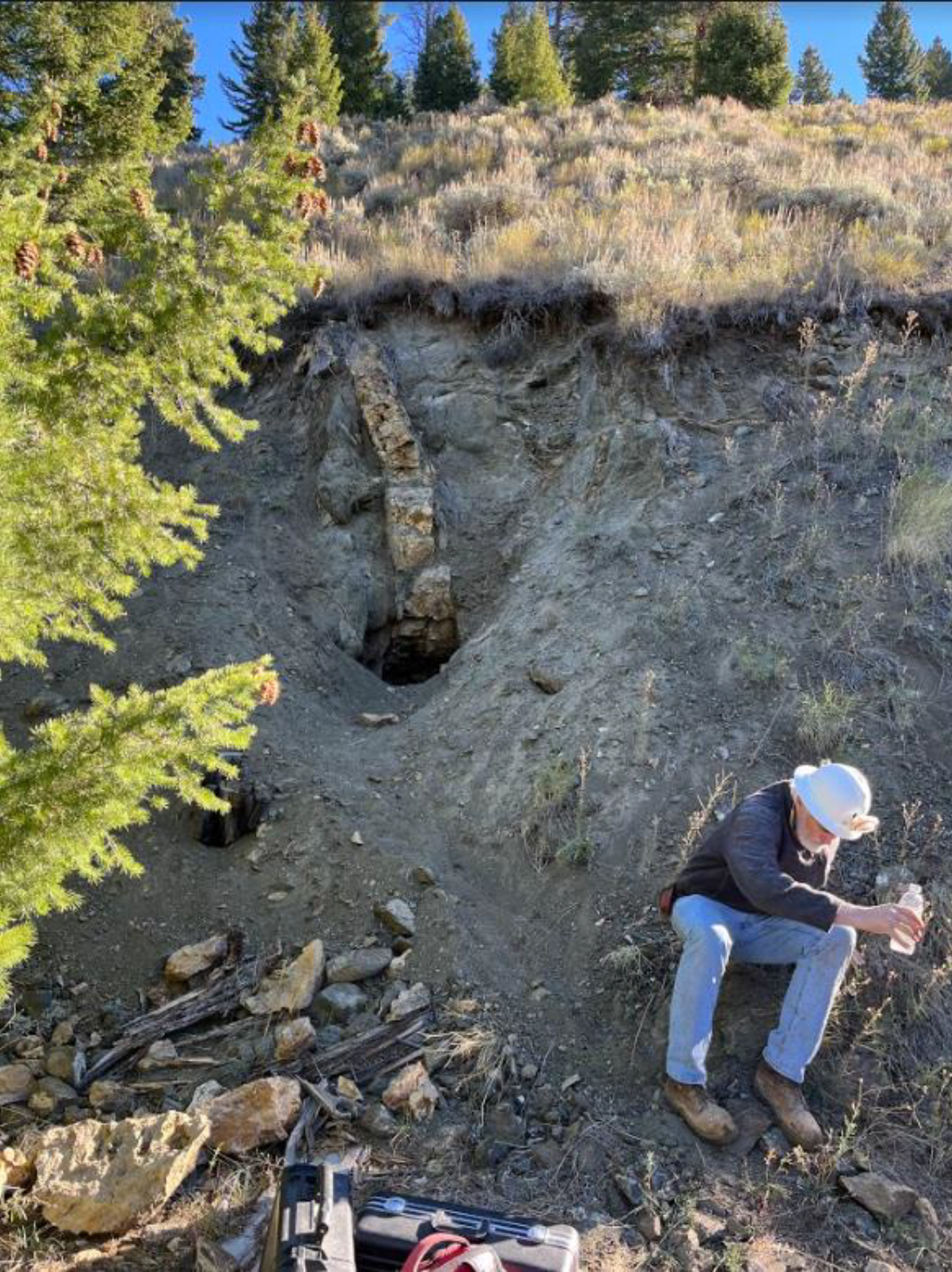

Crowley Adit #3 portal View is a quartz-feldspar dike.

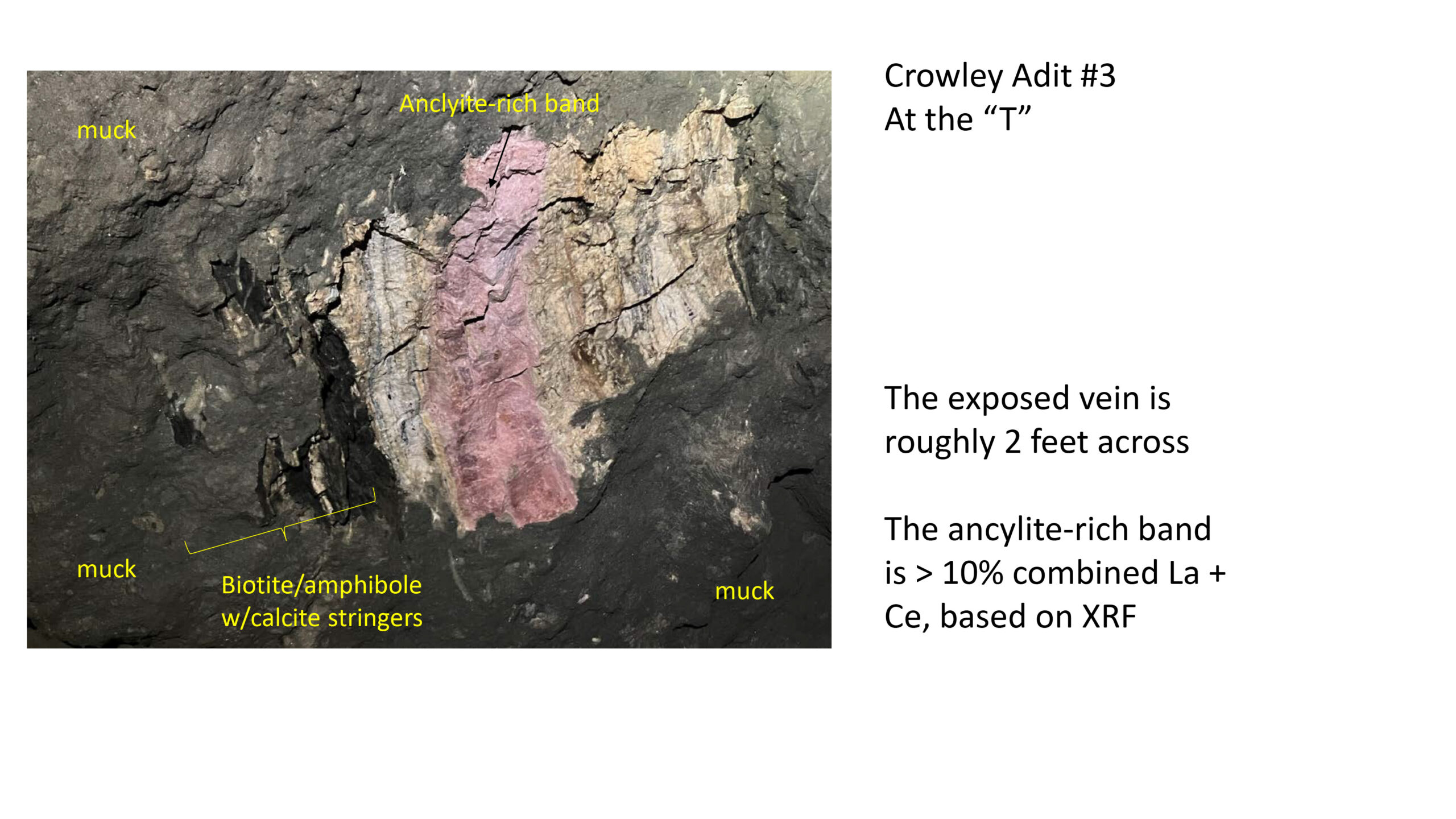

Crowley Adit #3 At the "T". The exposed vein is roughly 2 feet across. The ancylite-rich band is > 10% combined La + Ce, based on XRF.

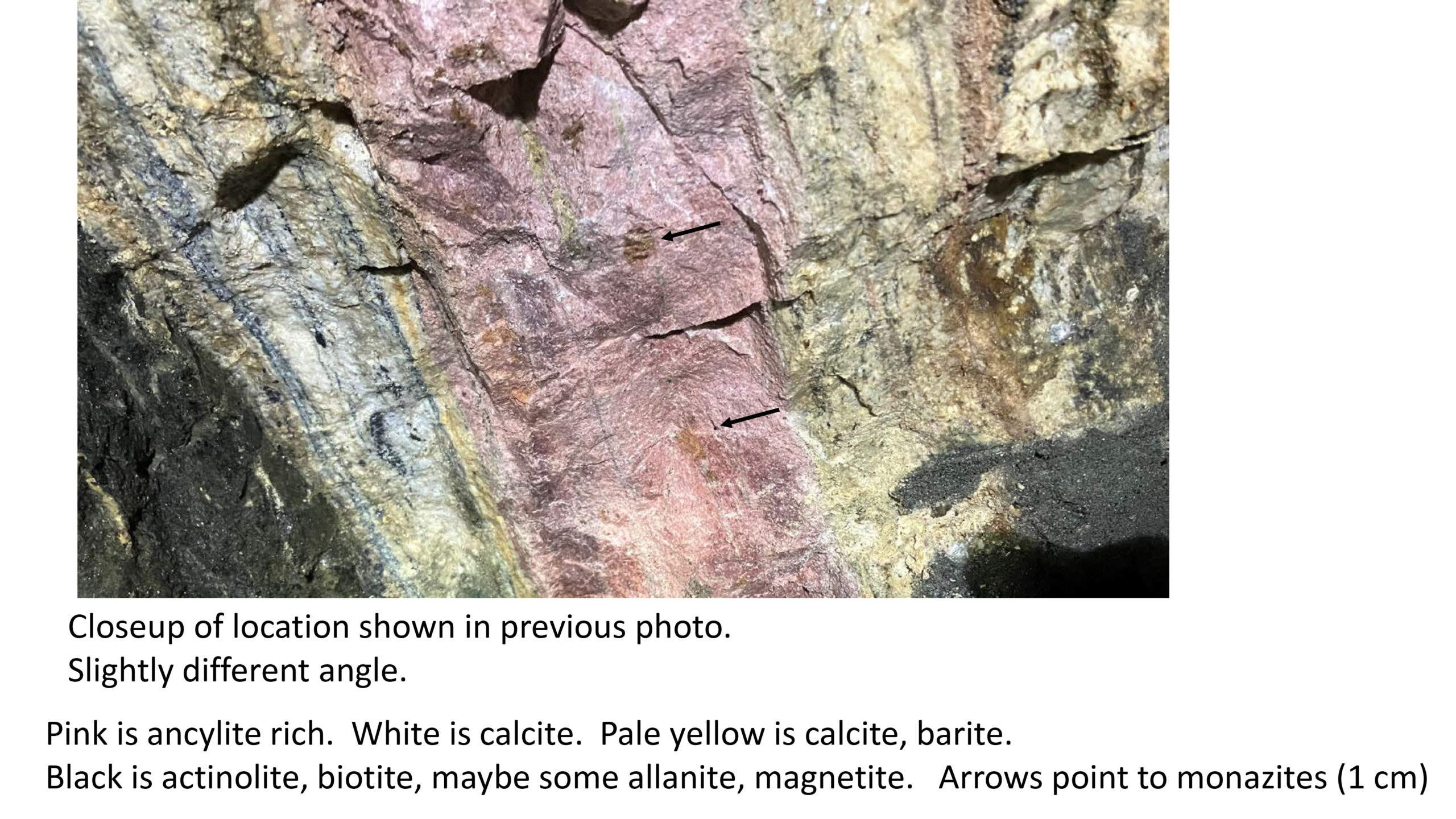

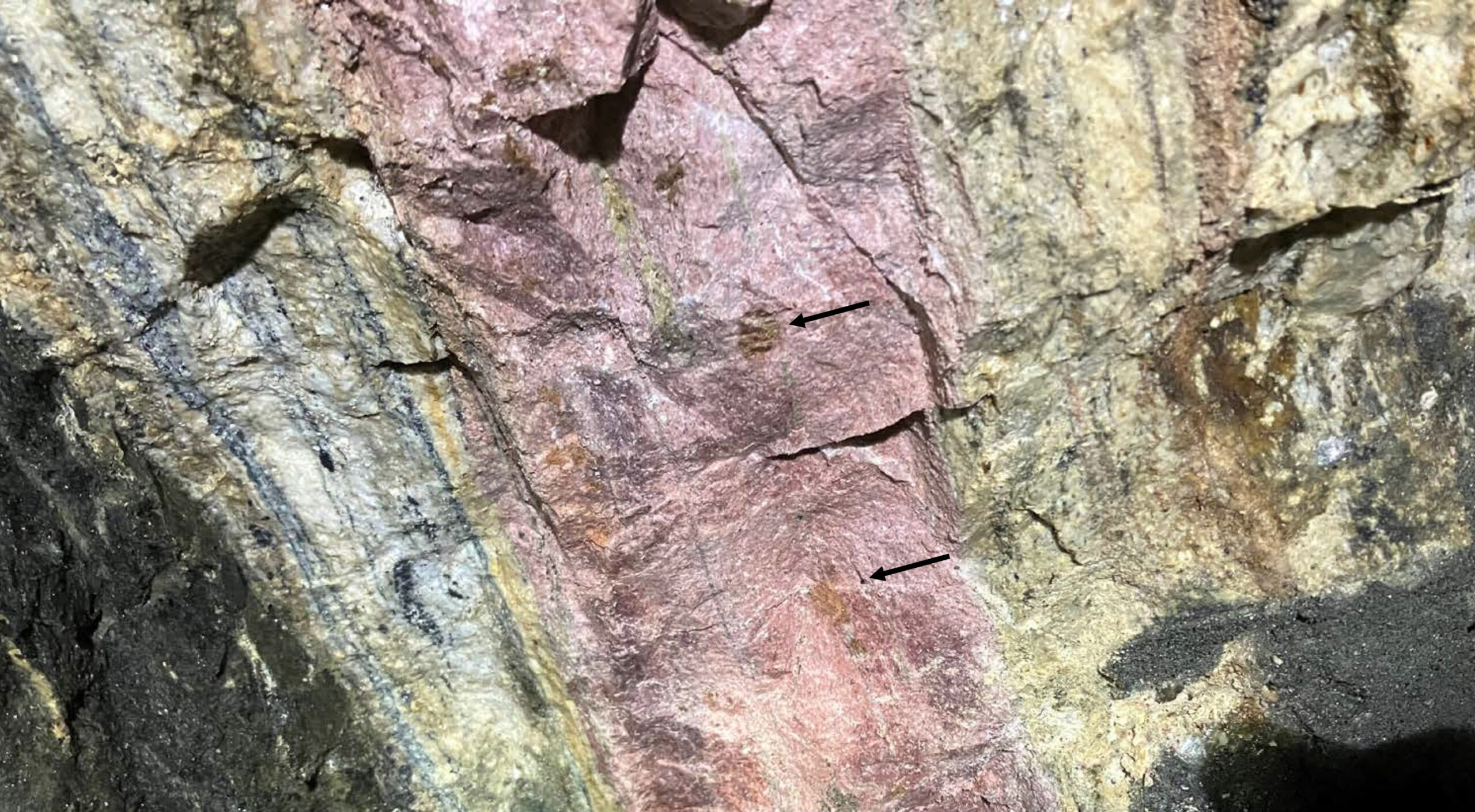

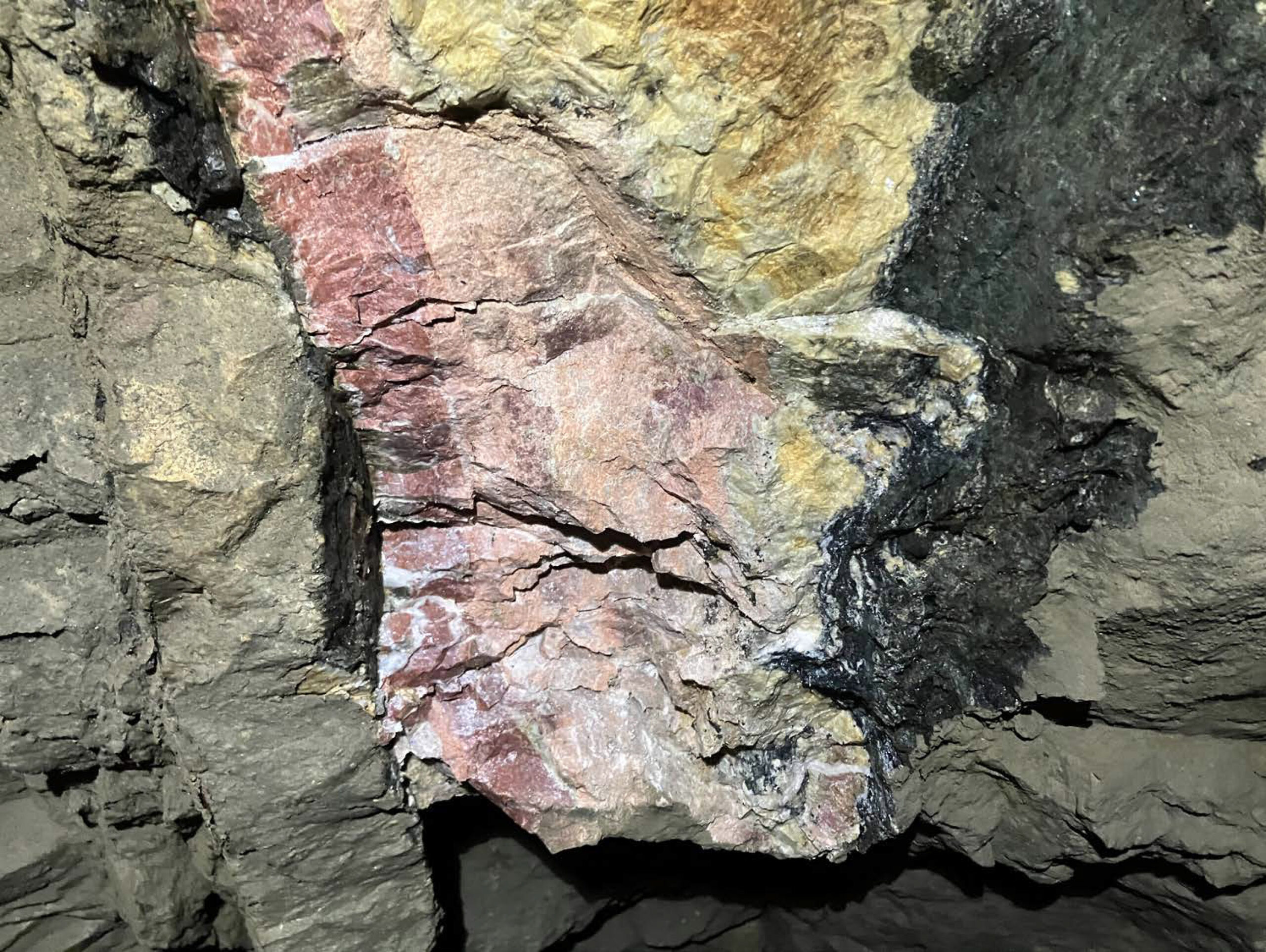

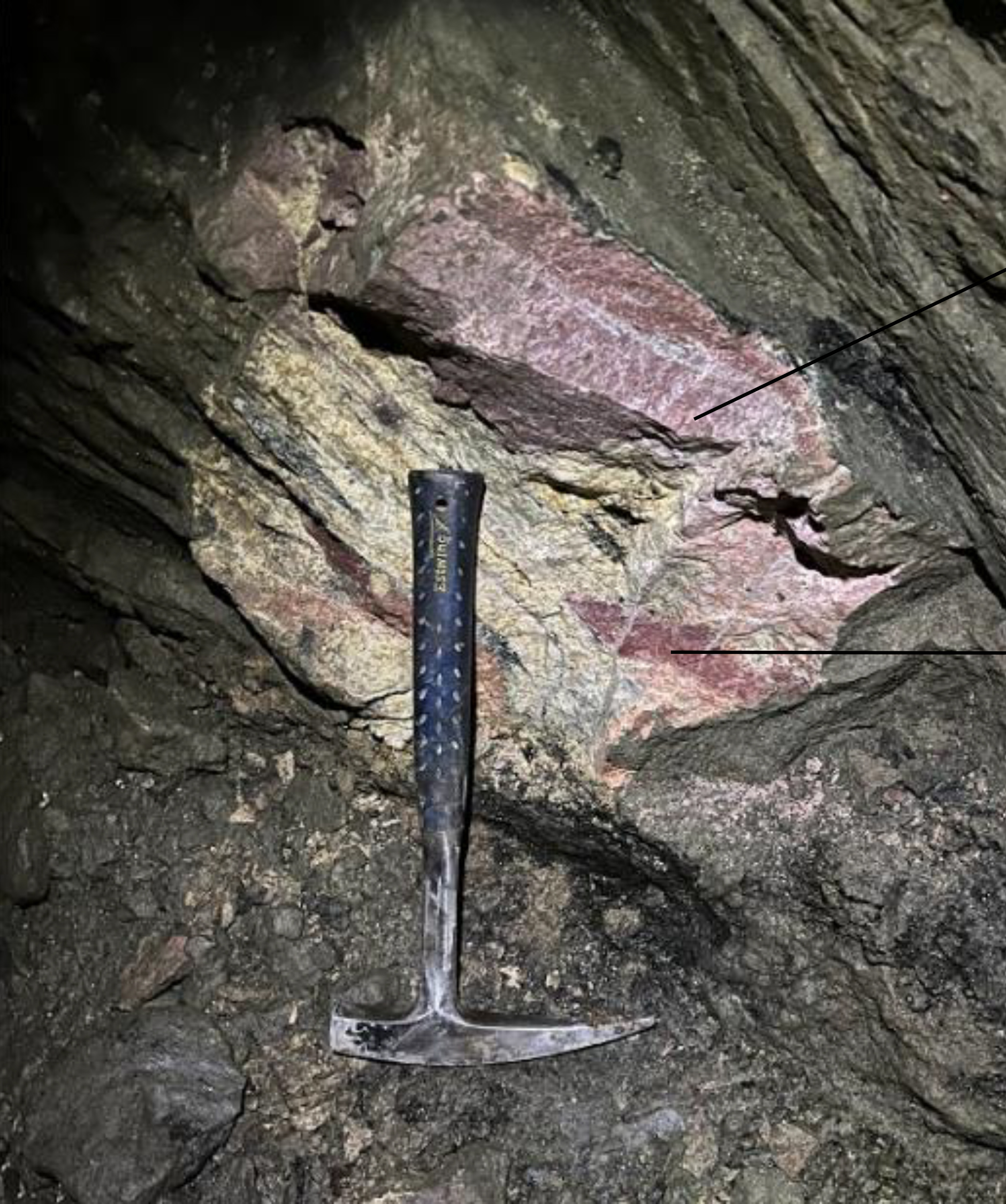

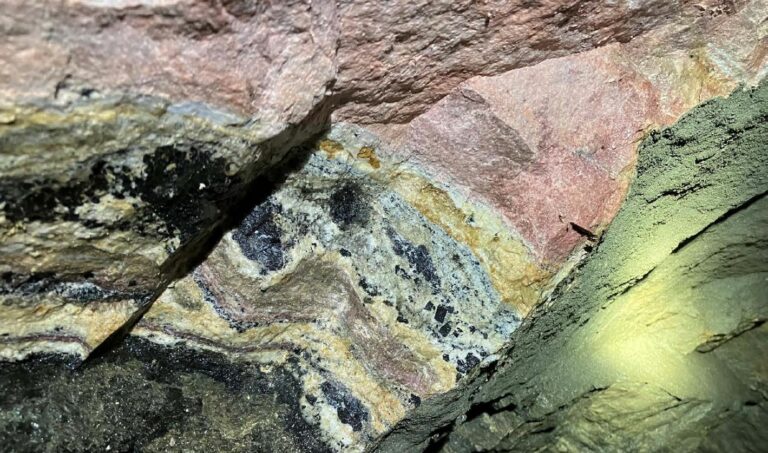

Pink is ancylite rich. White is calcite. Pale yellow is calcite, barite. Black is actinolite, biotite, maybe some allanite, magnetite. Arrows point to monazites (1cm).

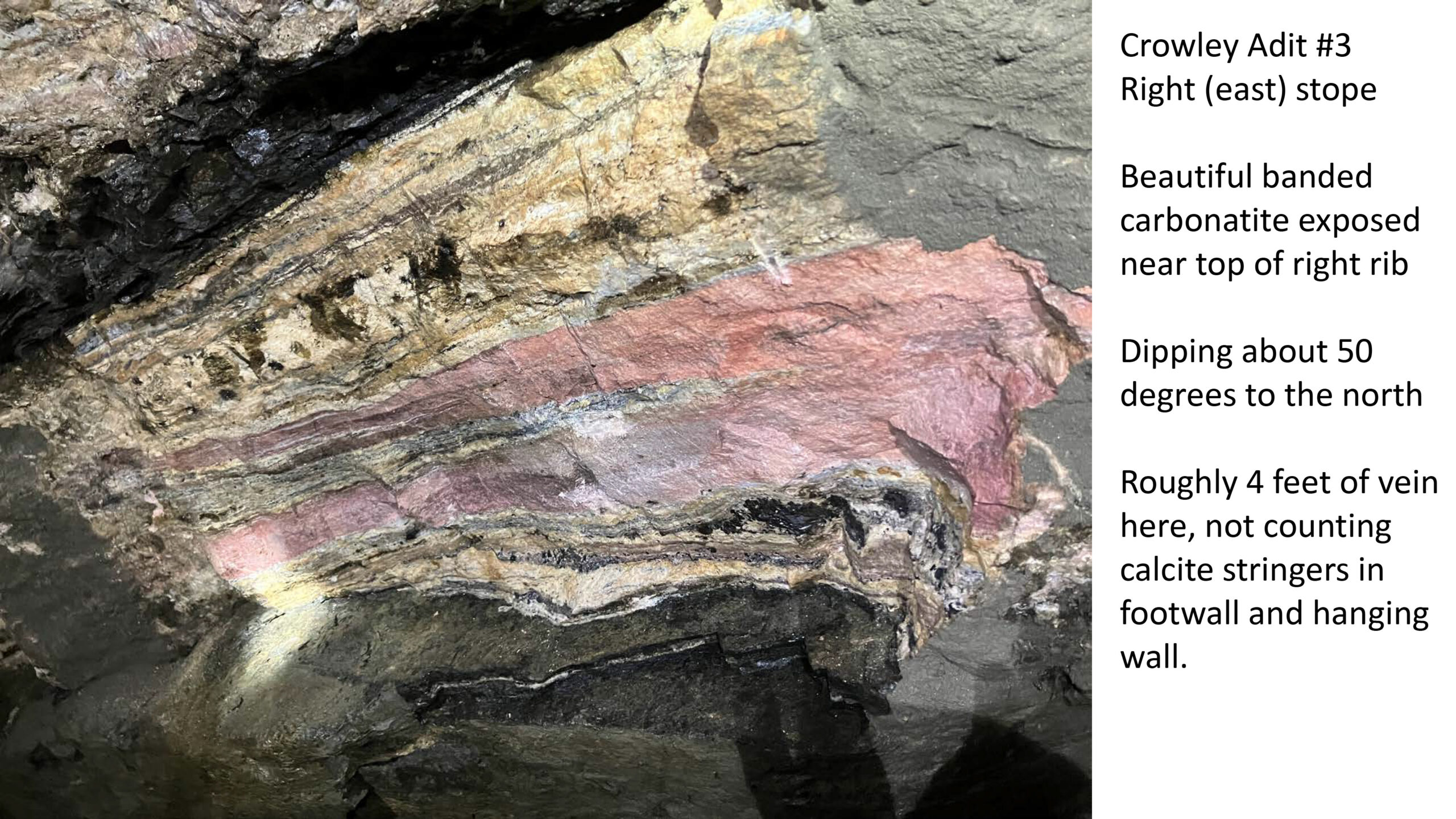

Crowley Adit #3 Right (east) stope. Beautiful banded carbonatite exposed near top of right rib. Dippling about 50° to the north.

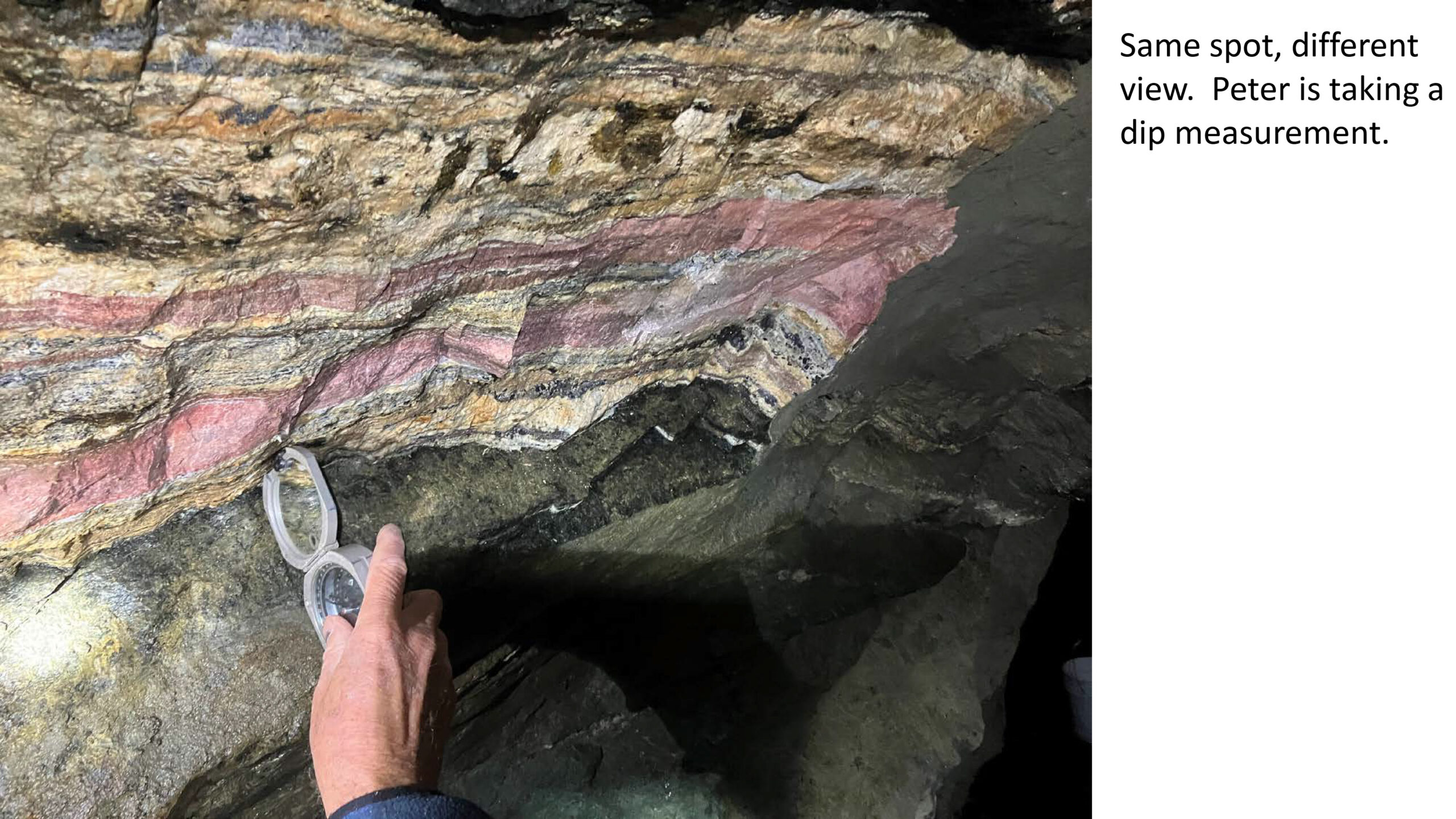

Same spot, different view. Peter is taking a dip measurement.

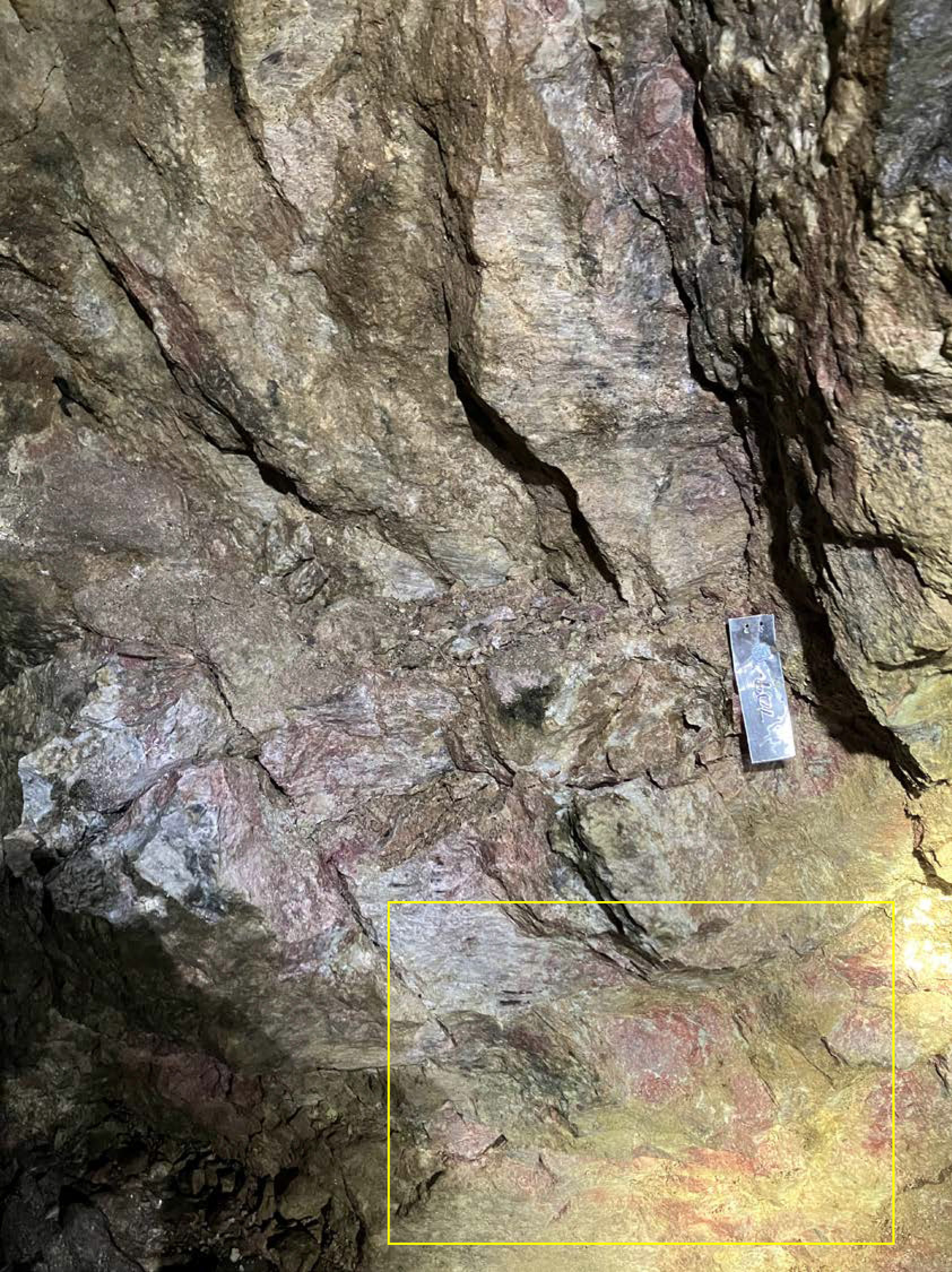

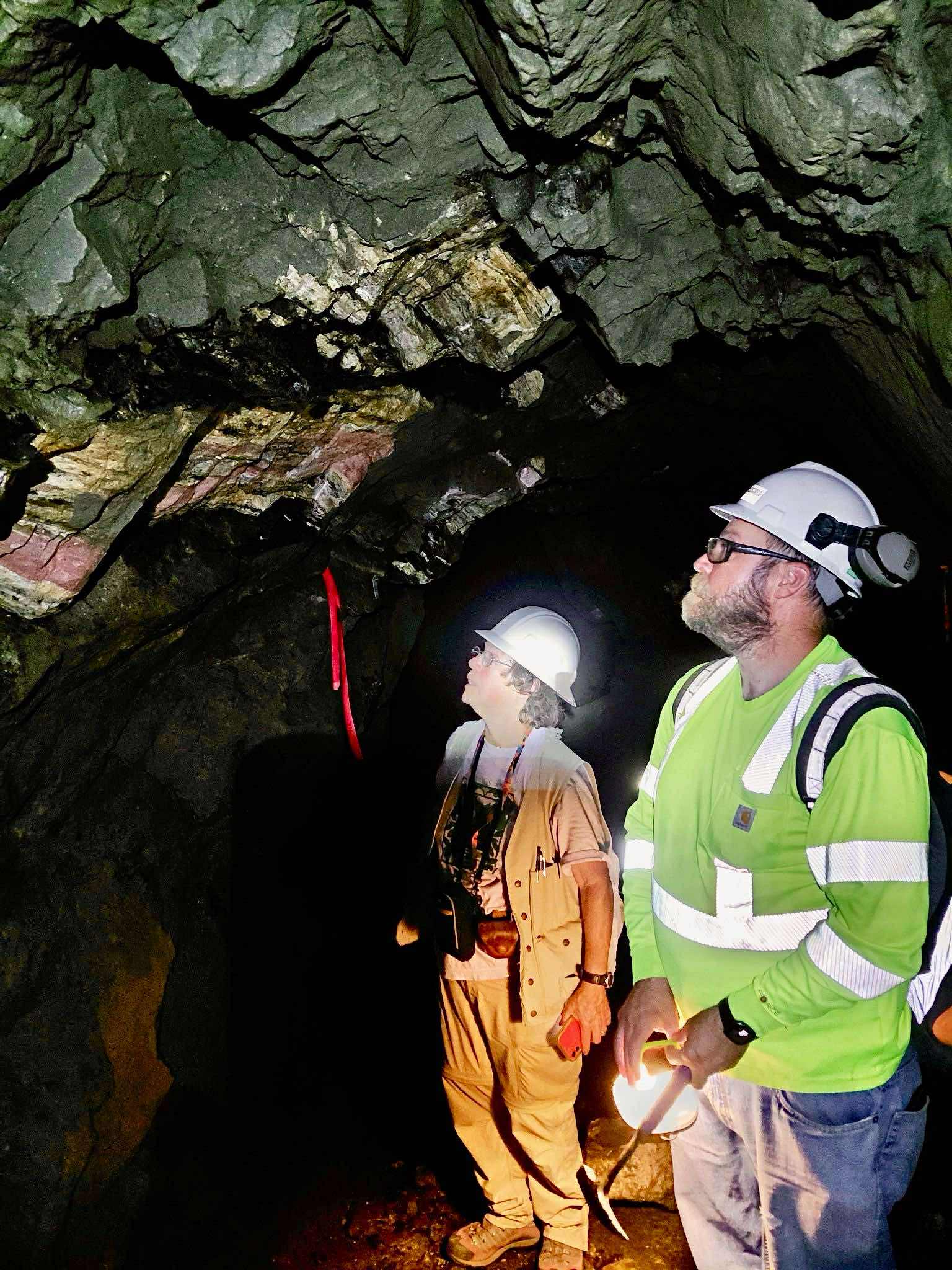

Same spot, Sarah for scale. Box on next page.

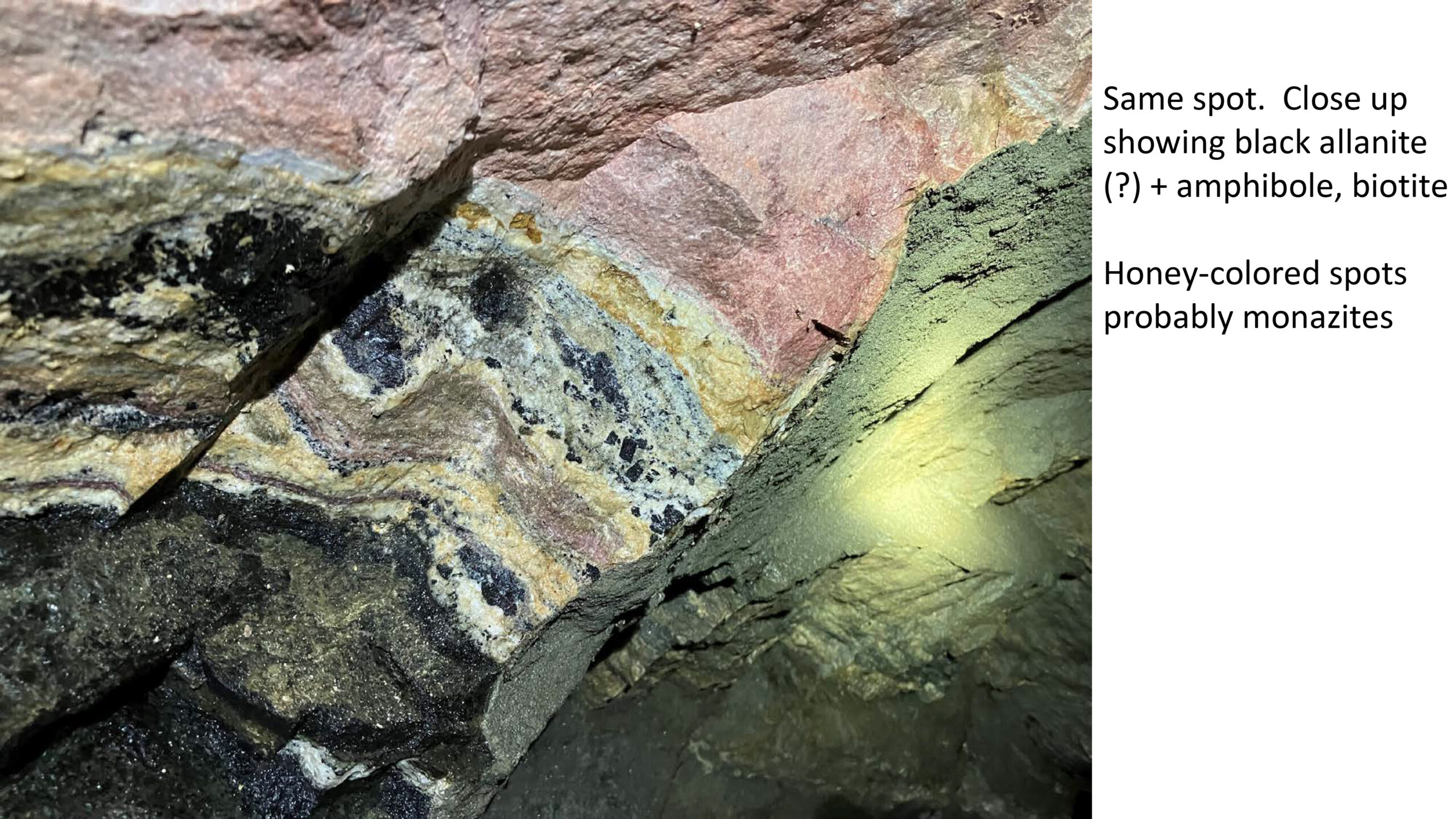

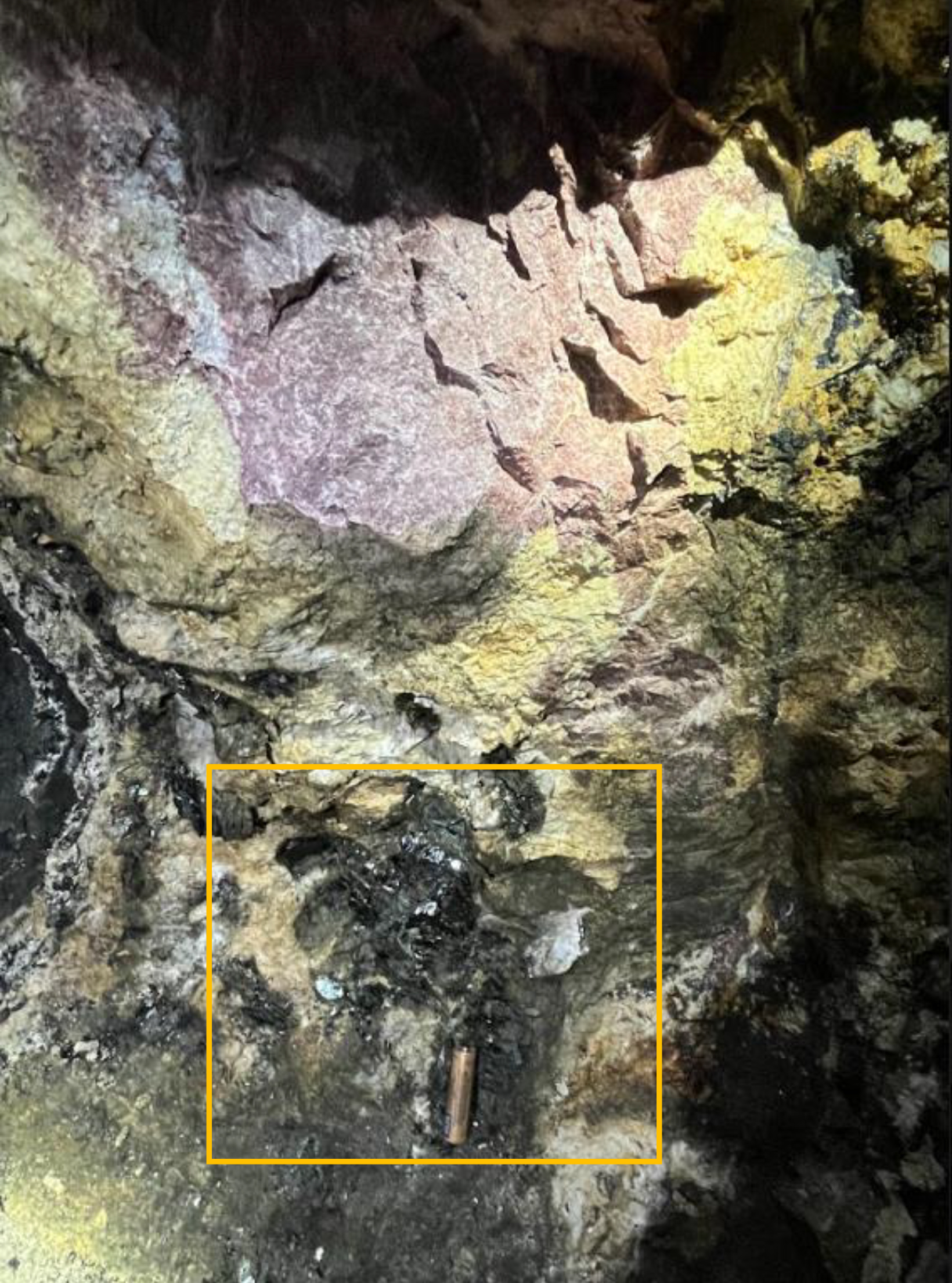

Same spot. Close up showing black allanite (?) + amphibole, biotite. Honey-colored spots probably monazites.

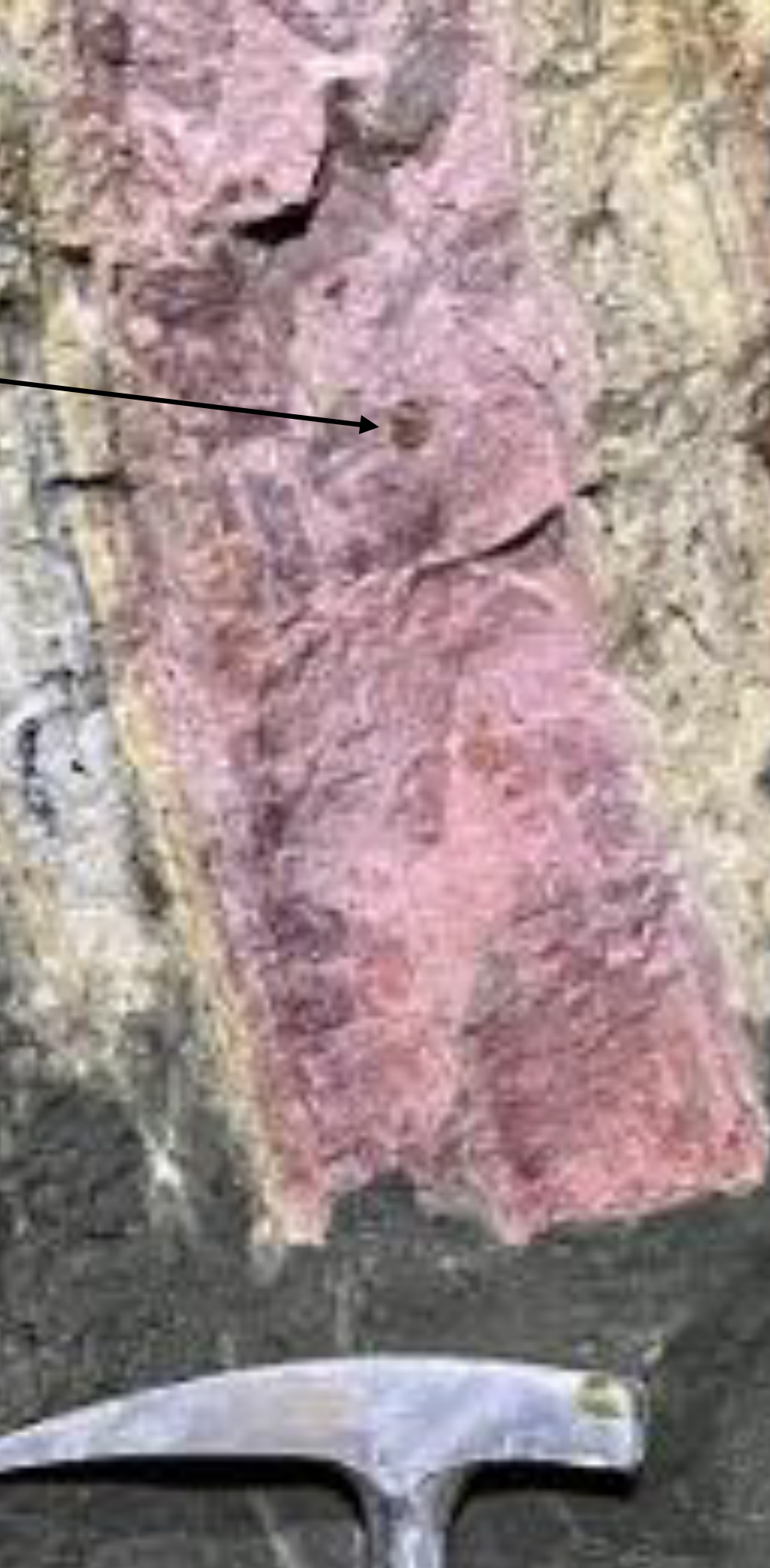

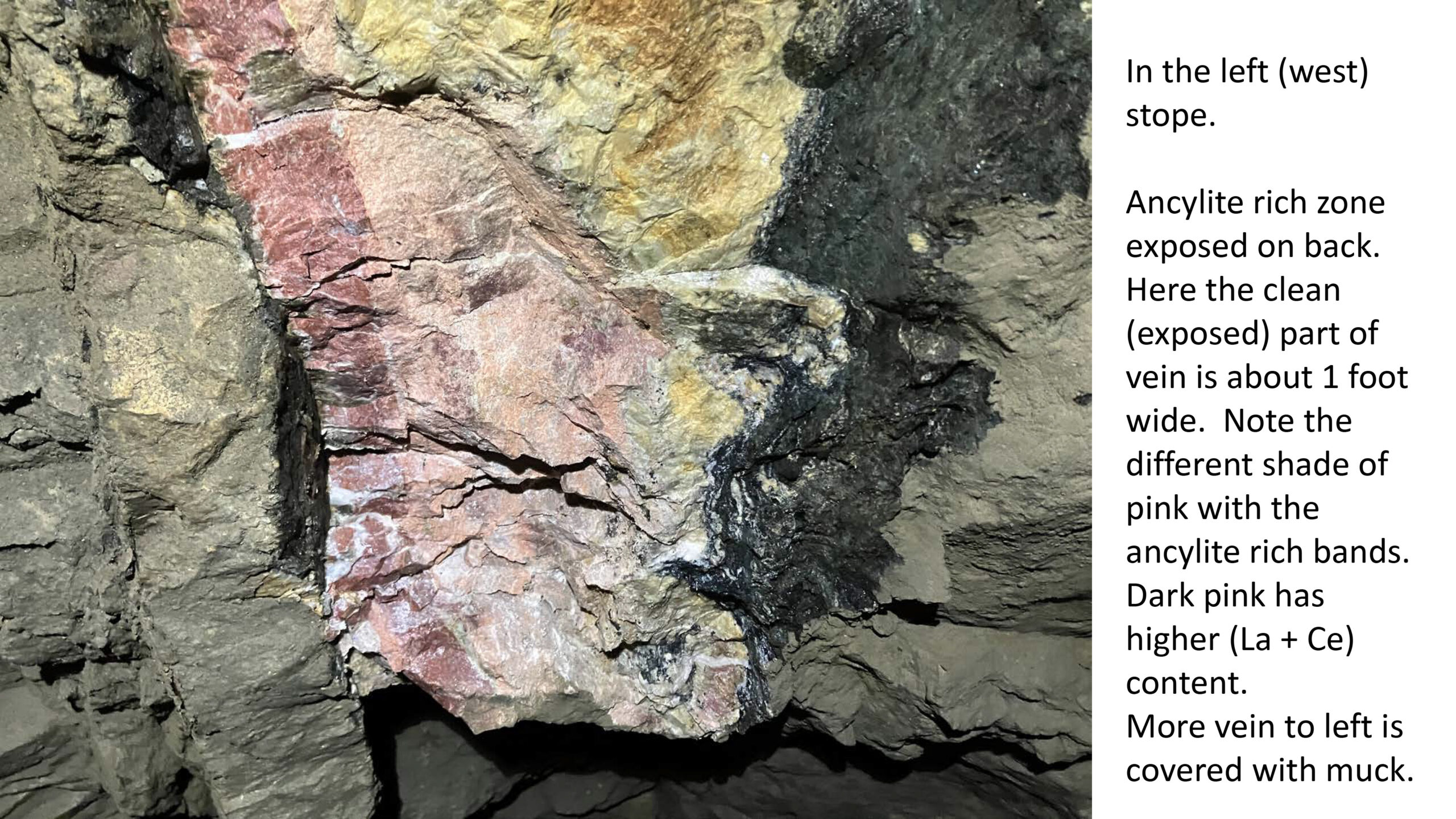

Ancylite rich zone exposed on back. Here the clean (exposed) part of vein is about 1 foot wide. Note the different shade of pink with the ancylite rich bands.

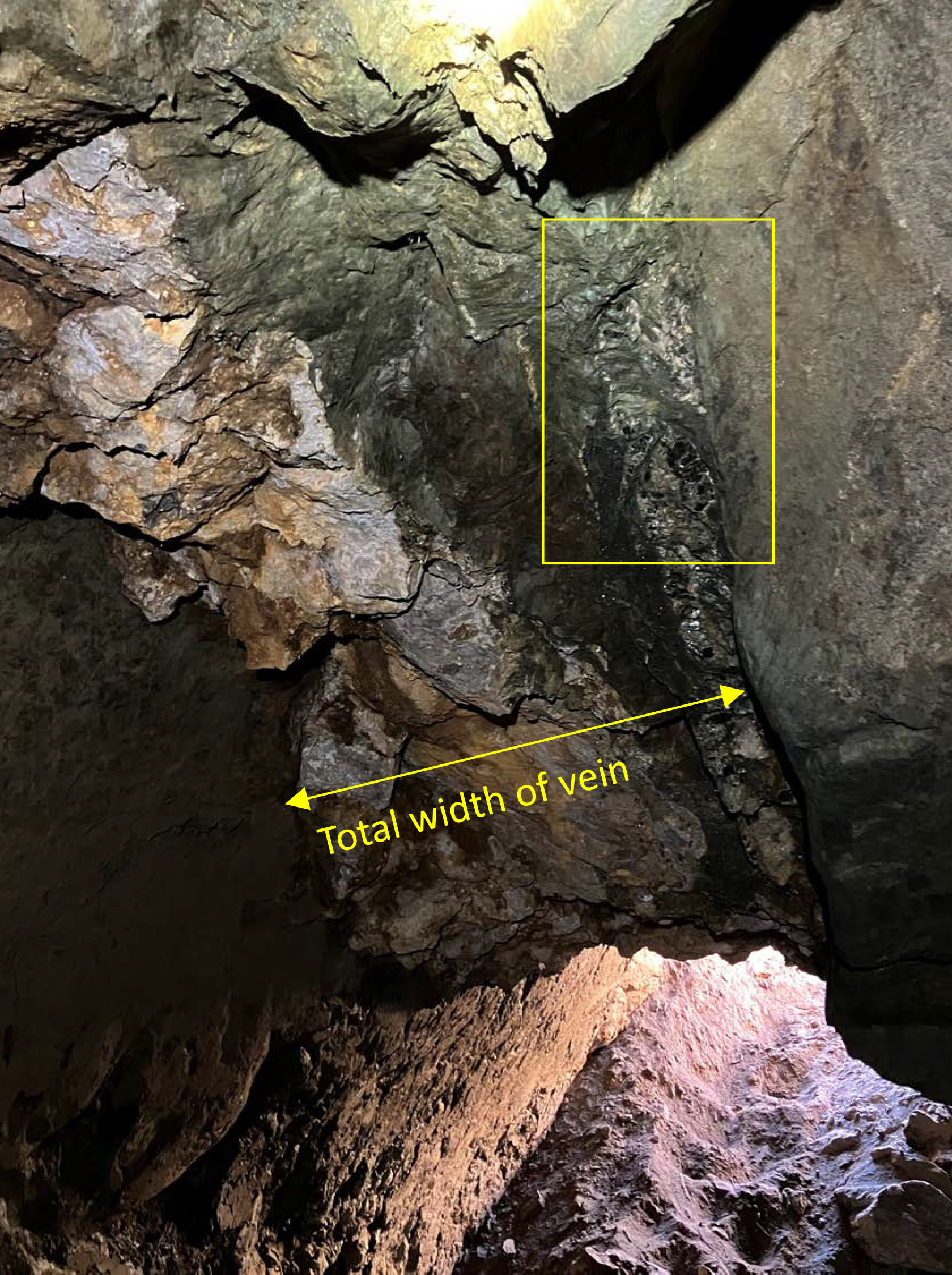

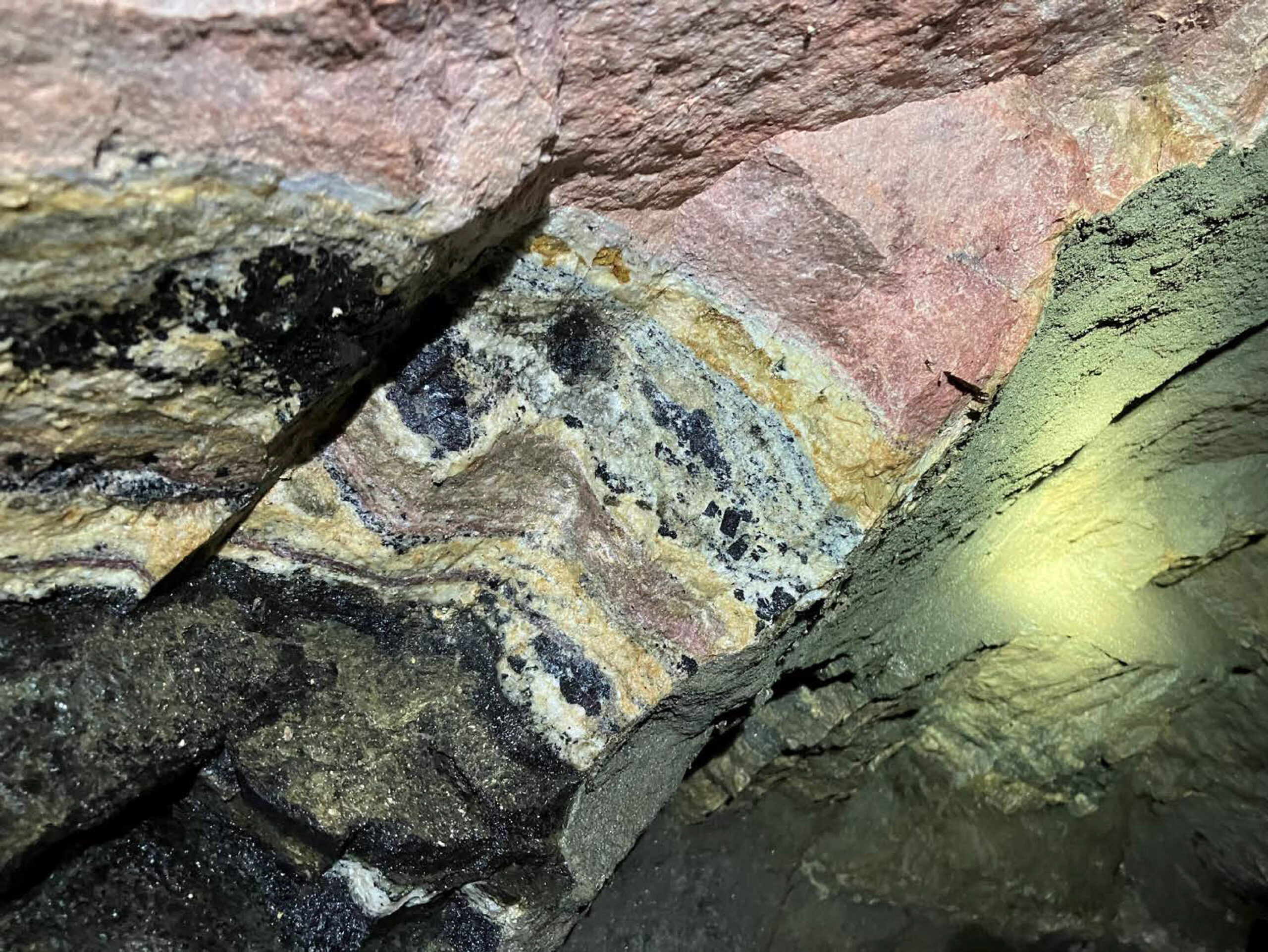

Beautiful banded carbonatite exposed near top of right rib. Approximately 4 feet of vein here, not counting calcite stringers in footwall and hanging wall.
Sheep Creek Property Adit
Beautiful, banded carbonatite exposure showing roughly 4 feet of vein in adit #3
Banded Carbonatite with Ancylite Sheep Creek Property Adit
Carbonatite with Allanite, Columbite, and Monazite Sheep Creek Property
Ancylite in Sheep Creek Property Adit
Good ancylite mineralization on right rib
U.S. Critical Materials Chief Geologist Peter Mejstrick taking a dip measurement of the exposed carbonatite.
U.S. Critical Materials Chief Geologist Peter Mejstrick taking a dip measurement of the exposed carbonatite.
Beautiful banded carbonatite exposed near top of right rib. Approximately 4 feet of vein here, not counting calcite stringers in footwall and hanging wall.
At Crowley #1
Looking Back at portal.
Good ancylite mineralisation on right rib. Could the patches have been single large crystals originally?
Pegmatitic calcite (white) and biotite (black). At 705'.
Augen gneiss near back of tunnel.
Same spot, different view. Peter is taking a dip measurement.
Crowley Adit #3 portal View is a quartz-feldspar dike.
Pink is ancylite rich. White is calcite. Pale yellow is calcite, barite. Black is actinolite, biotite, maybe some allanite, magnetite. Arrows point to monazites (1cm).
Close up showing black allanite (?) + amphibole, biotite. Honey-colored spots probably monazites.
Ancylite rich zone exposed on back. Here the clean (exposed) part of vein is about 1 foot wide. Note the different shade of pink with the ancylite rich bands.
Crowley Adit #1 10/13/2022

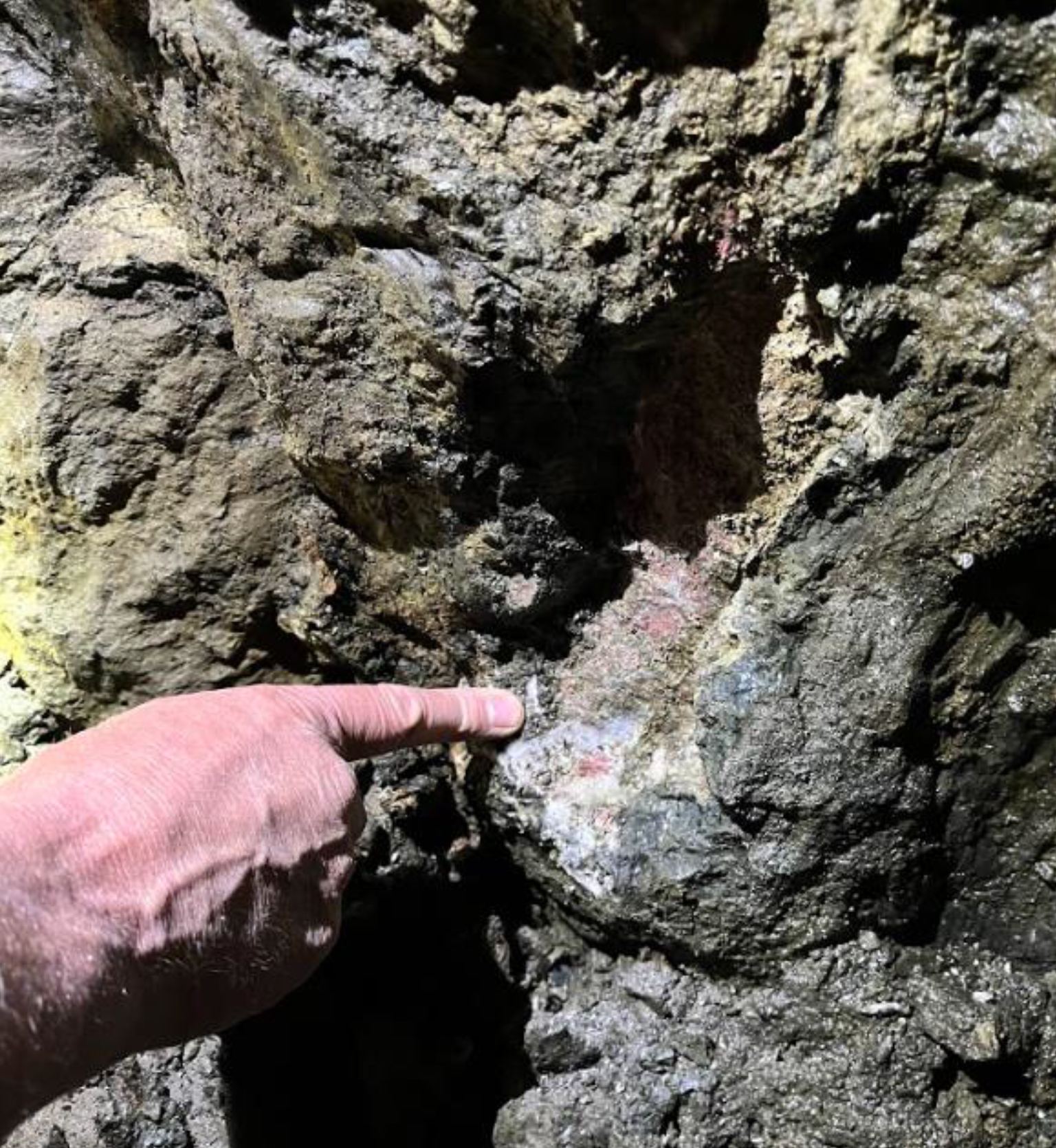

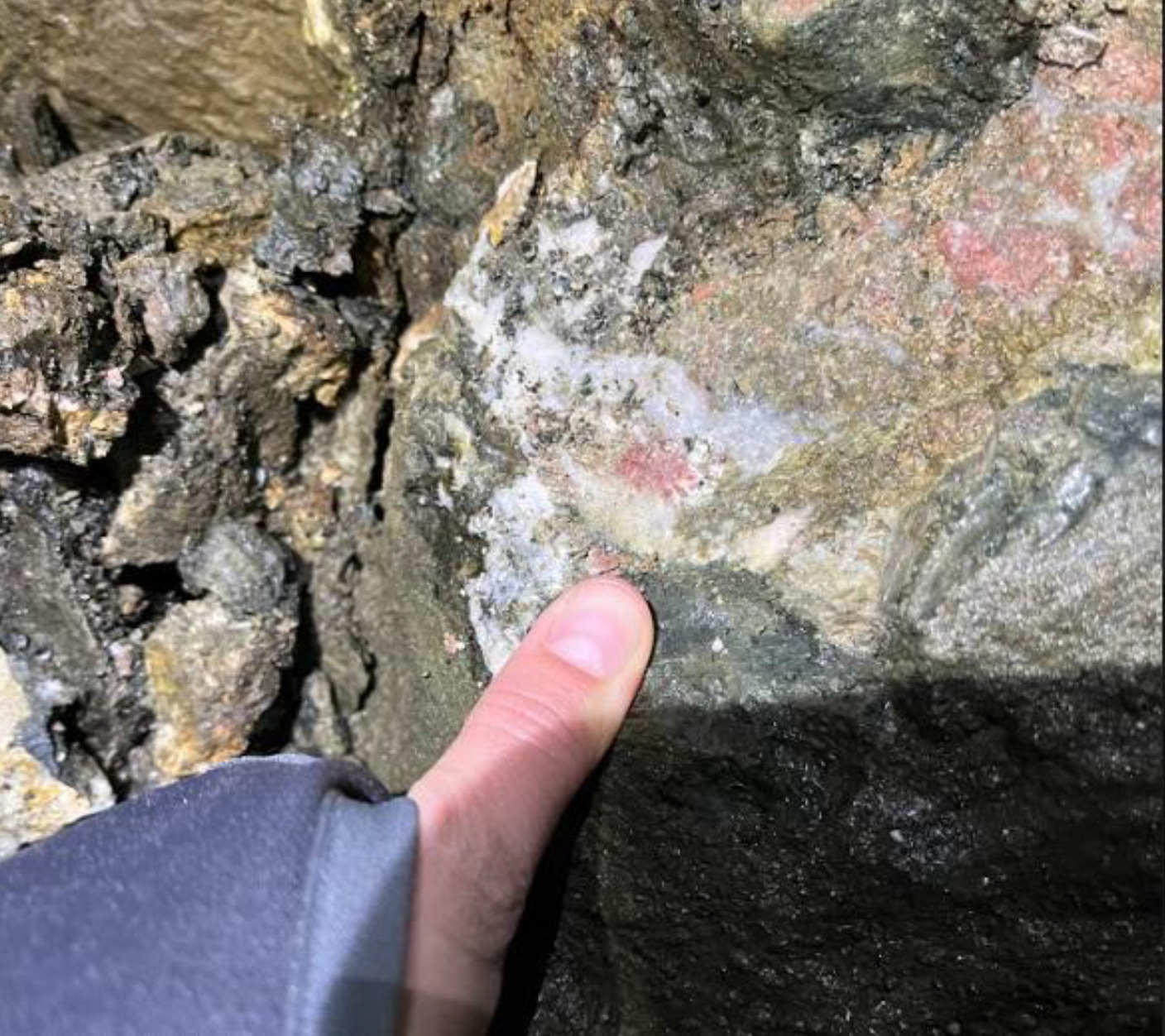

Possible ancylite with finger for scale.
Possible ancylite with finger for scale.

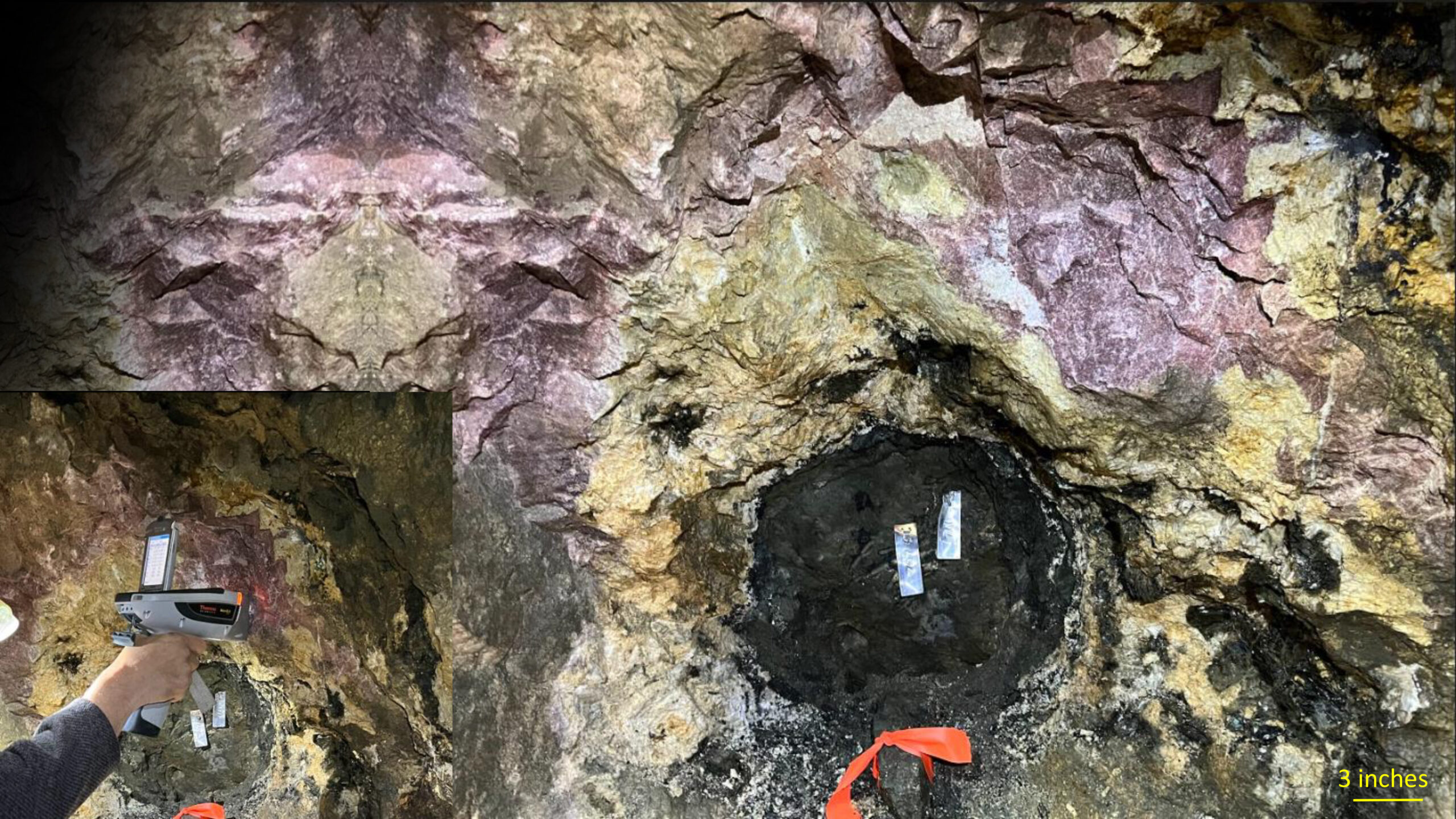

Scan 4753 was taken by the XRF pictured in the lower left corner, ancylite with monazite indicated by the presence of REEs with Sr and P.

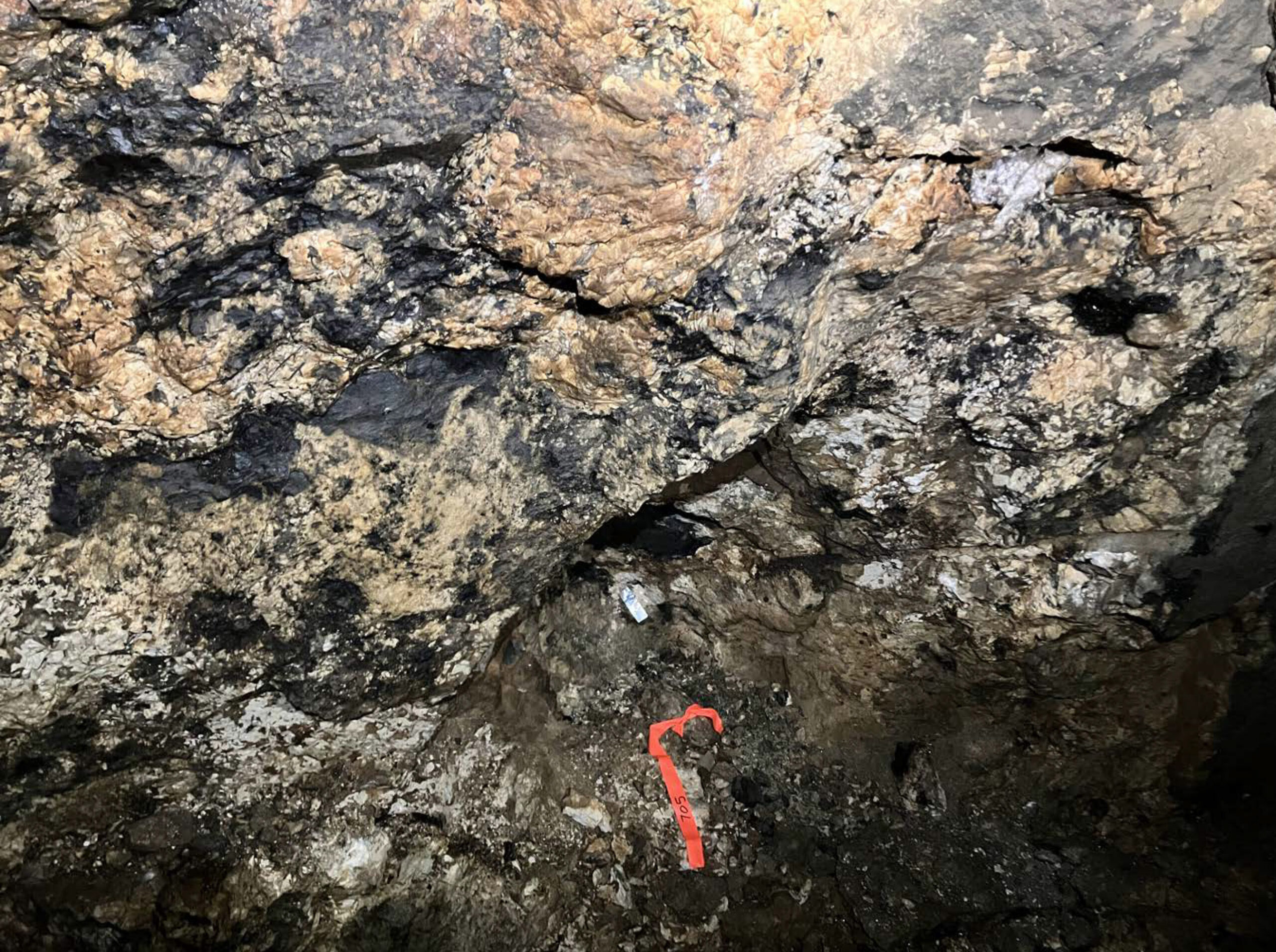

Biotite sampled for Ar-Ar dates at 200'.
Biotite sampled for Ar-Ar dates at 200'.

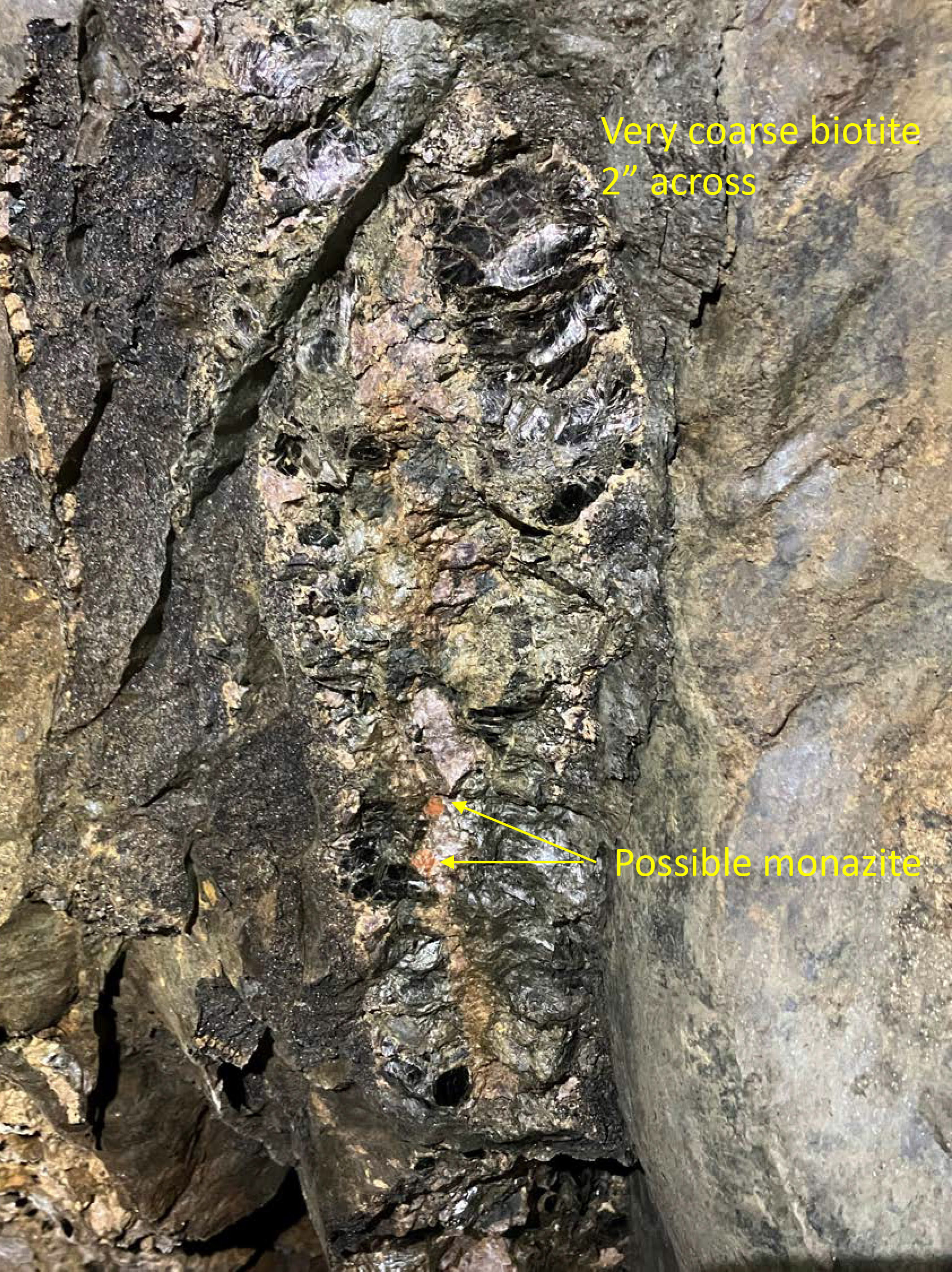

Coarse grained monazite (pink) @ 200', close up of last photograph.

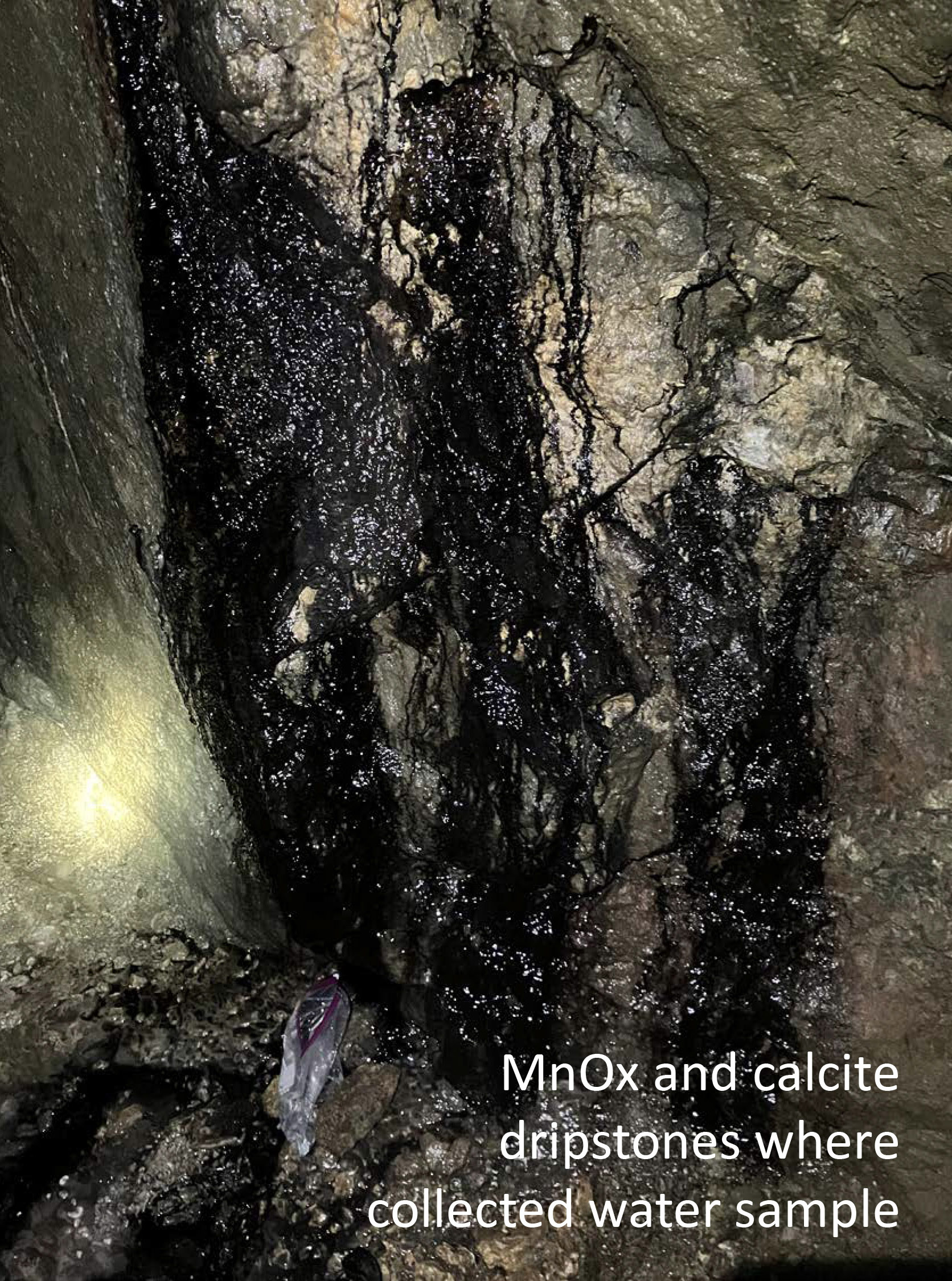

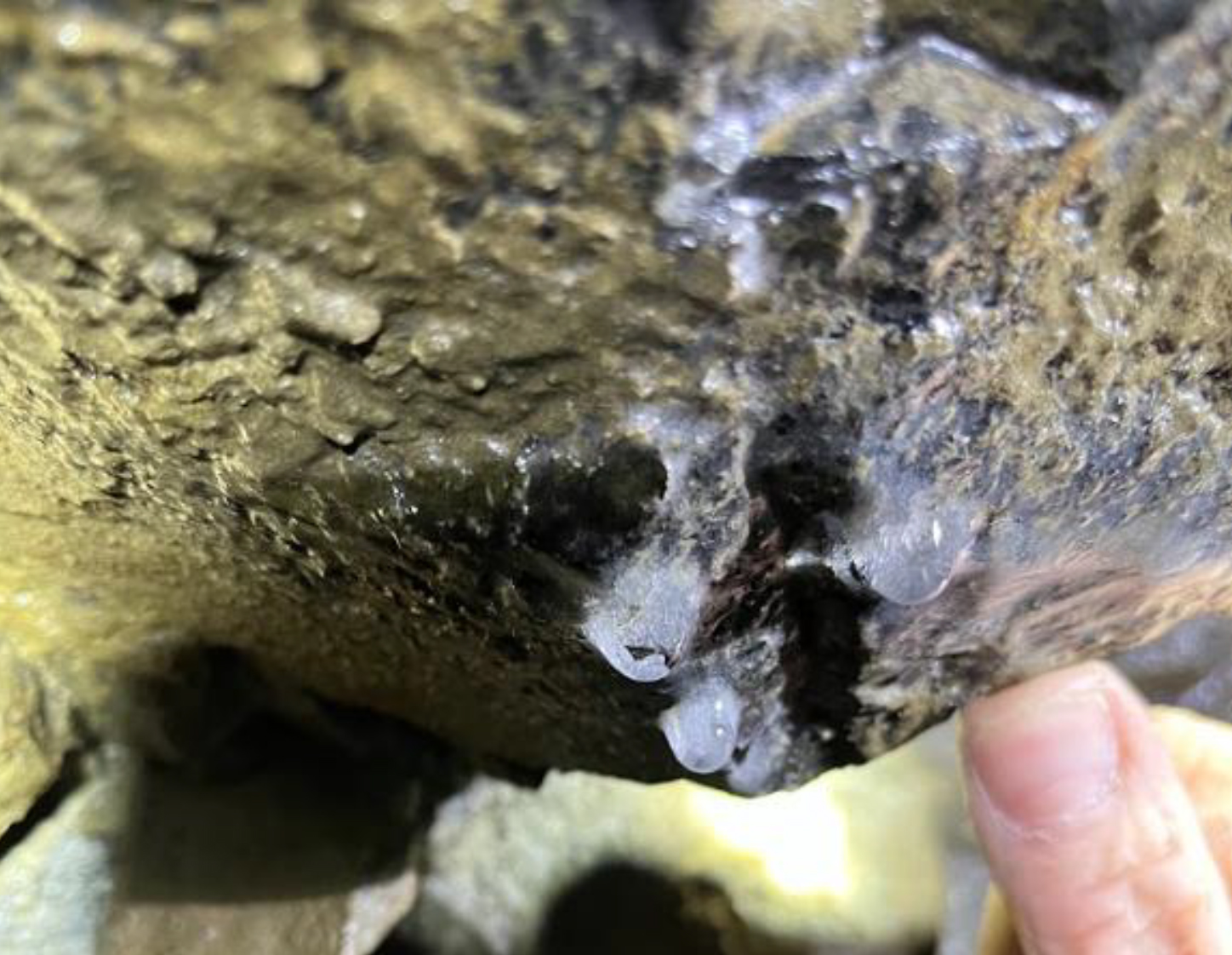

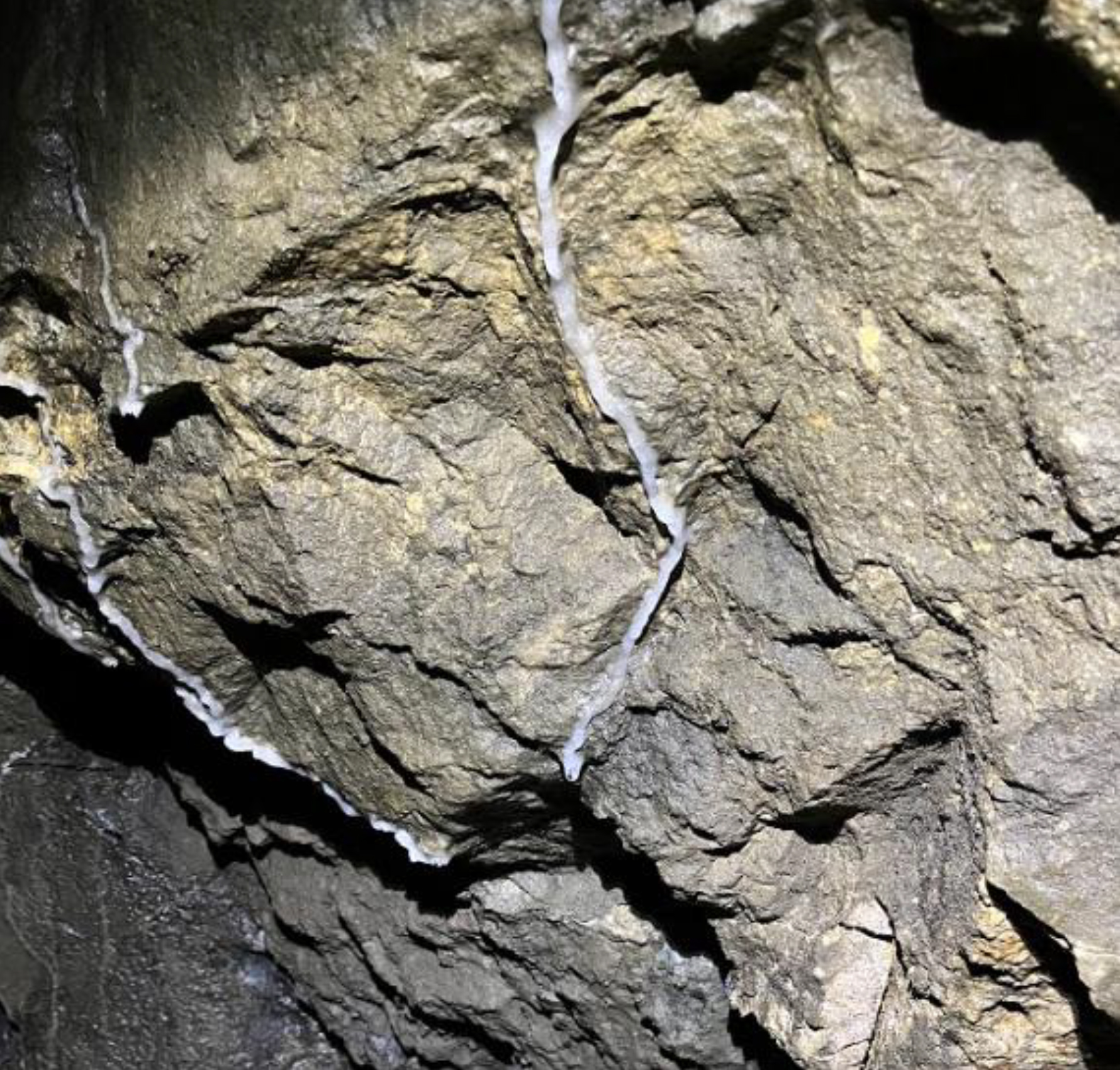

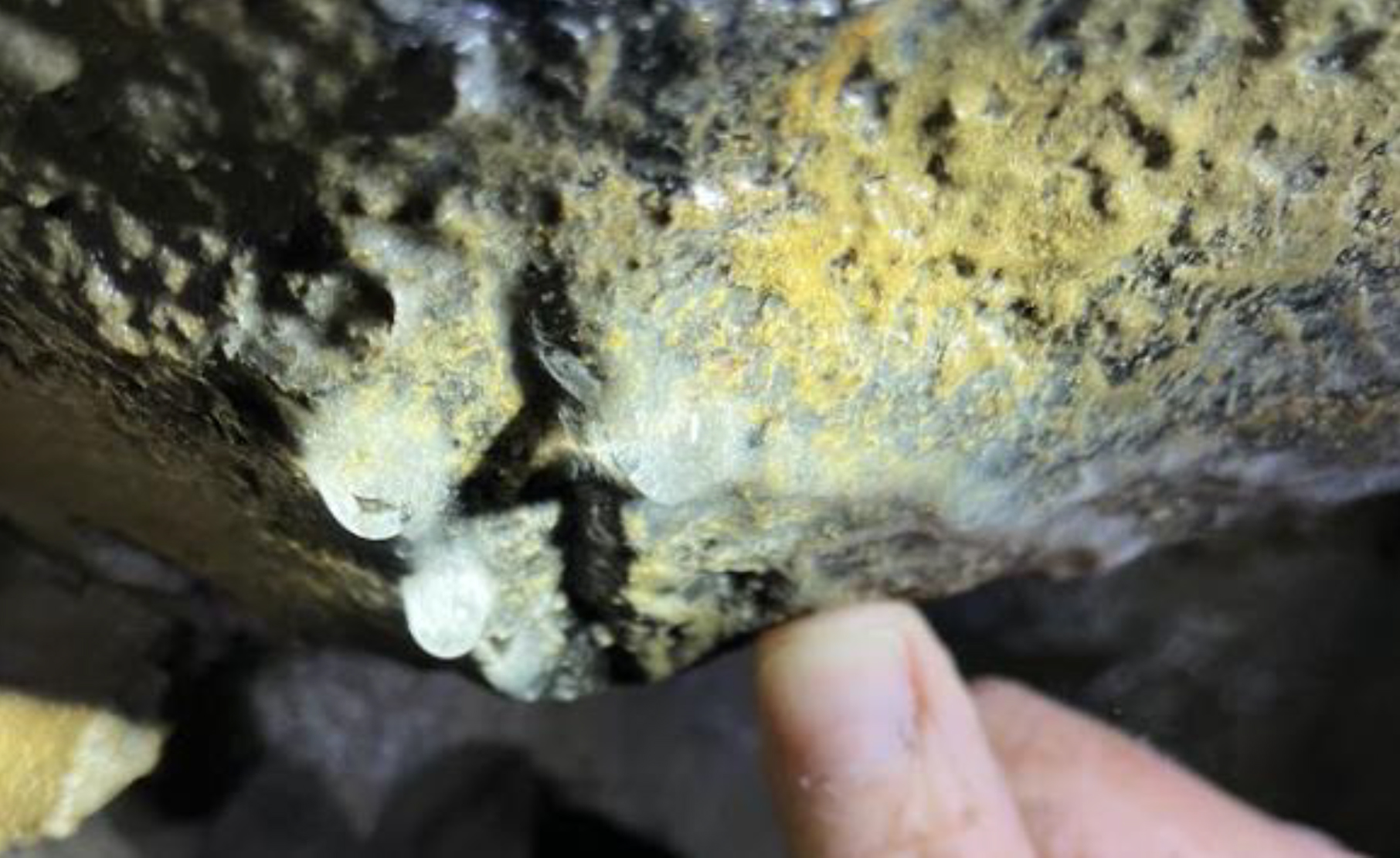

Modern calcite veins and coarse grain calcite stalactites, both sampled for C-O isotopes.
Modern calcite veins and coarse grain calcite stalactites, both sampled for C-O isotopes.
Modern calcite veins and coarse grain calcite stalactites, both sampled for C-O isotopes.
Crowley #3

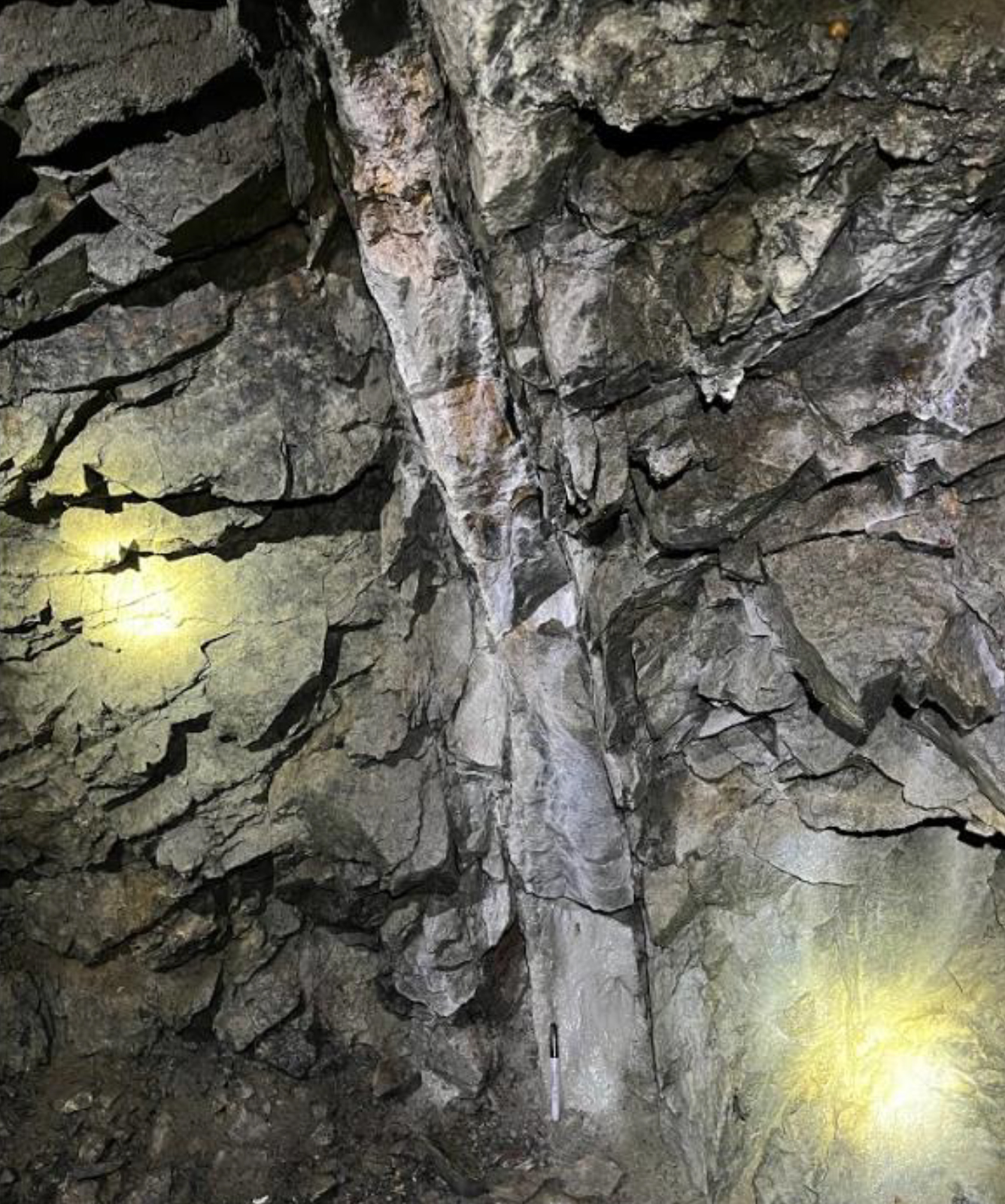

Carbonatite vein connected from left rib to right rib @ 60'.
Carbonatite vein connected from left rib to right rib @ 60'.
Ancylite in Sheep Creek Property Adit
@ the fork between R and L, 380'monazite suspected here.
@ 20'L + C. Lighter pink ancylite, scan 4760, 2.9% Sr, 5.8% Ce, 4.6% La. Dark pink ancylite, 3759, 2.75% Sr, 8.7% Ce, 6.9% La.

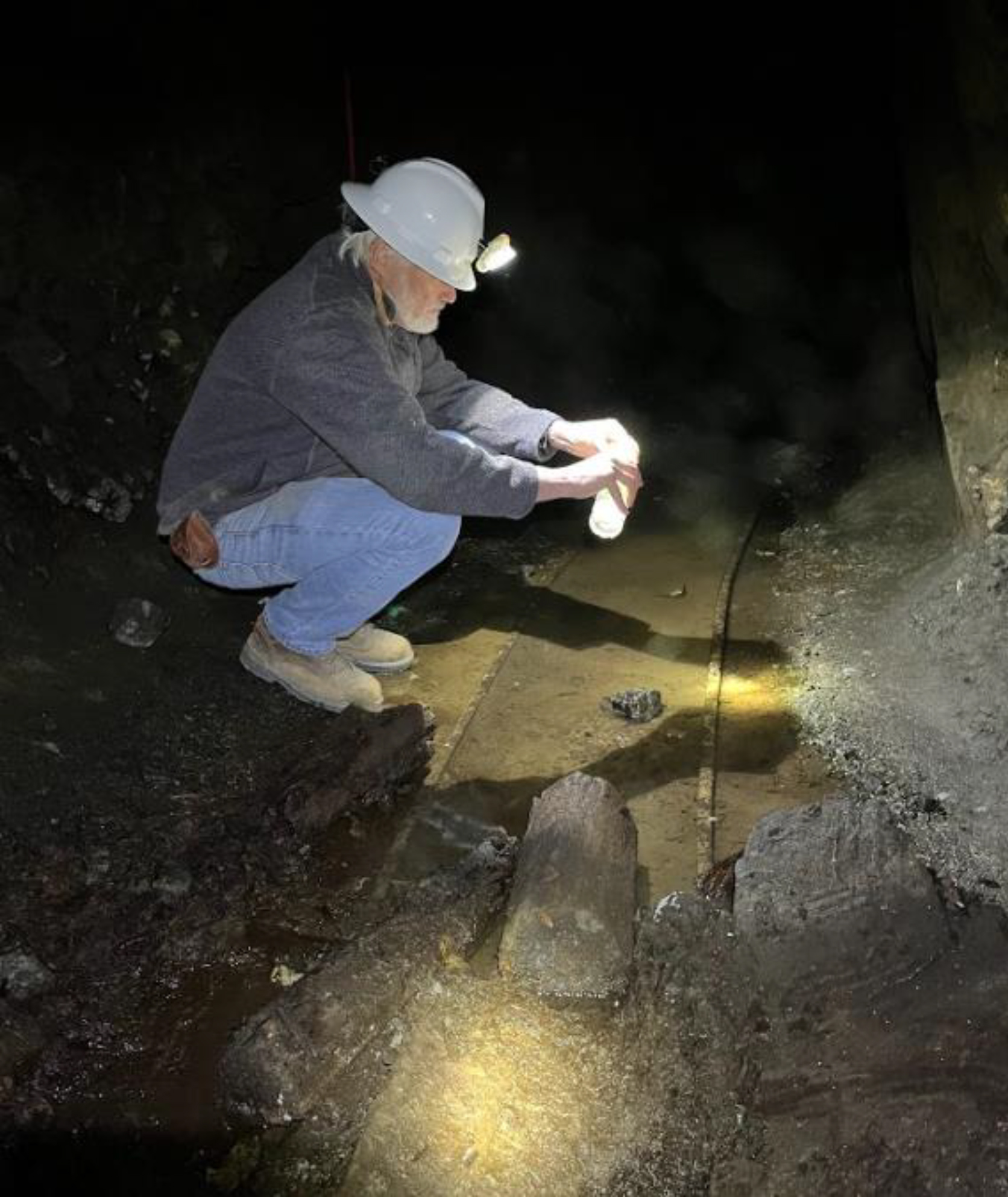

Dr. Gammons sampling mine water in adit #1.

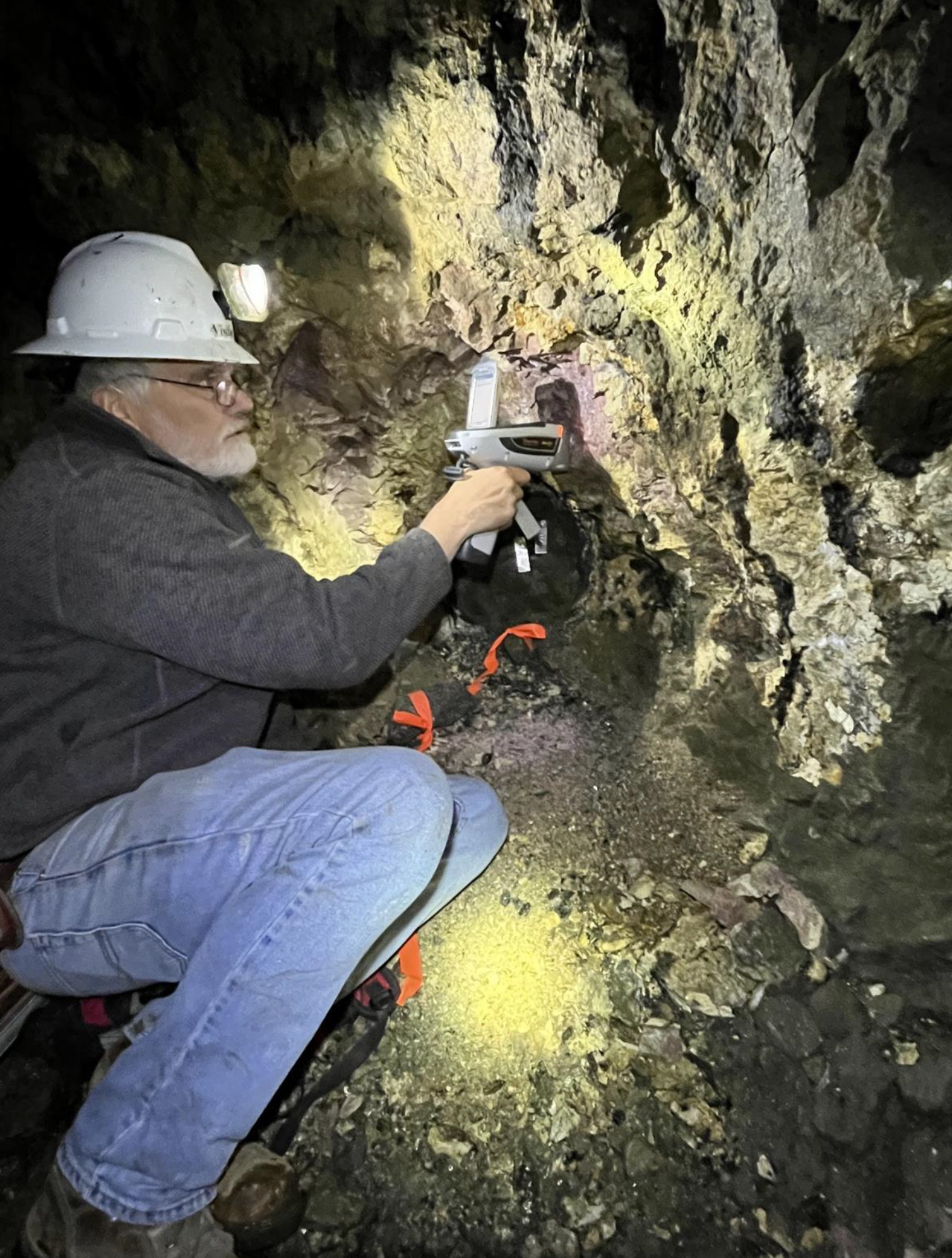

Dr. Gammons using the XRF in adit #3.
